此Dropdown list(下拉列表)显示类型将允许用户在版面的一个下拉列表中创建一个逗号分隔值列表。要创建一个Dropdown list(下拉列表)：





1. Create a new Custom Token(创建一个新的自定义标记)带有或者不带有文本。
2.从Custom Token(自定义标记)窗口拖拽自定义标记到版面上，让其插入。
3.双击版面中的自定义标记，用以打开Editcustom token(编辑自定义标记)对话框。
4.更改Displaytype(显示类型)为Dropdown list(下拉列表)。
5.在文本域列表中输入一列逗号分隔选项(或者，通过点击tokensymbol按钮，来使用任何标记值)(图1948))。

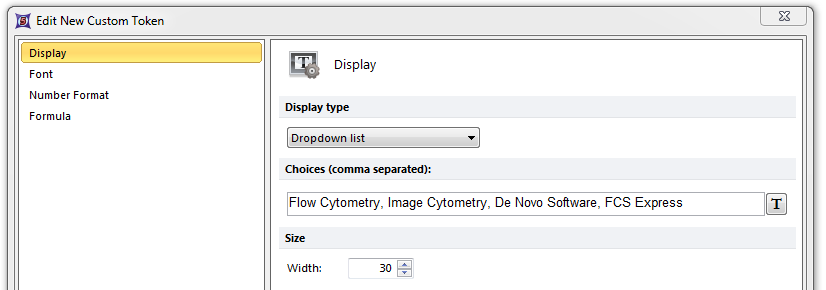

Figure 19.48 Enter a list of choices separated by a comma to be displayed in the dropdown list.

Figure 19.48 Enter a list of choices separated by a comma to be displayed in the dropdown list.



6.点击OK。



在插入标记的版面中的文本框内，会出现一个空白框(图1949))。

Figure 19.49 An empty dropdown list box appears in the layout where the token was originally inserted.

Figure 19.49 An empty dropdown list box appears in the layout where the token was originally inserted.



7.点击下拉箭头，来揭开下拉列表的内容(图1950))。
Figure 19.50 Once the dropdown arrow is pressed a list of the comma separated choice that were entered will appear.

Figure 19.50 Once the dropdown arrow is pressed a list of the comma separated choice that were entered will appear.



8.点击下拉列表中的任何选项来填充文本框(图19)51)。
Figure 19.51 The dropdown list after the "De Novo Software" choice was selected.

Figure 19.51 The dropdown list after the "De Novo Software" choice was selected.



一旦选择一个选项，Custom Token(自定义标记)窗口中的自定义标记 值将反映在下拉列表中做出的选择。此自定义标记将被从Custom Token(自定义标记) 窗口拖拽到版面上的任何位置。当从Custom Token(自定义标记)窗口拖拽一个标记时，将使用“标签”的默认展示类型，因此只展示在下拉列表中选择的值。当下拉列表中该值被更新，自定义标记也将随之更新(图19)。52)

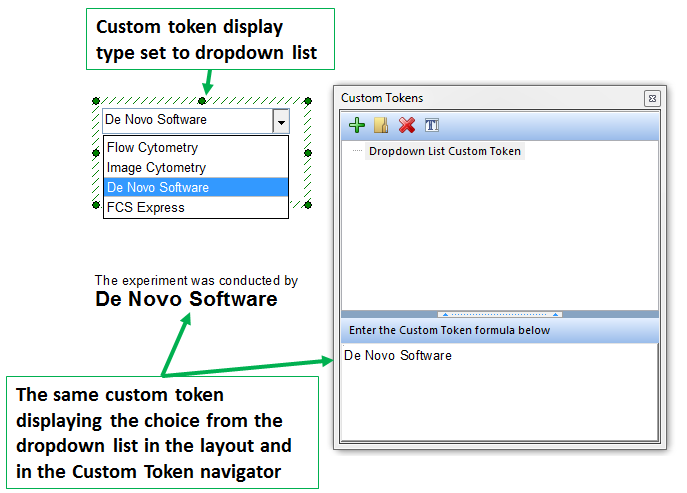

Figure 19.52 The value of "De Novo Software" was chosen from the dropdown list. The value was updated in the Custom Token navigator and also in the secondary text box containing the token.

Figure 19.52 The value of "De Novo Software" was chosen from the dropdown list. The value was updated in the Custom Token navigator and also in the secondary text box containing the token.
