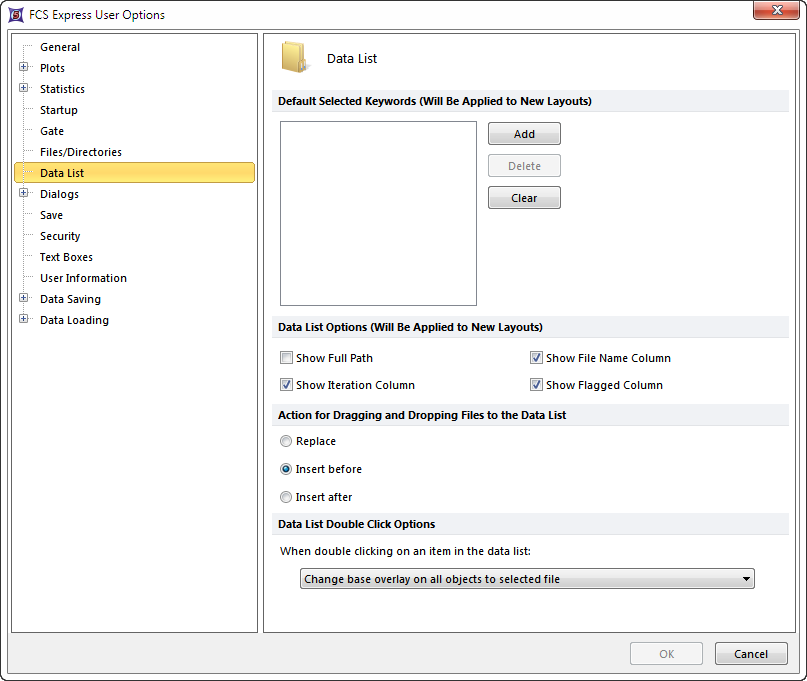

The Data List FCS Express User Options category (Figure 8.27) allows the user to control the default display and behavior of the Data List.
Figure 8.24 Data List options
The options are described in the table below.
Option
|
Explanation
|
Selected Keywords
|
Add or remove keywords by which to identify or sort files.
|
Data List Options
|
| • | Show or hide the Full Path of data files. |
| • | Show or hide the Iteration Column. |
| • | Show or hide the File Name Column. |
| • | Show or hide the Flagged Column. |
|
Action for Drag and Drop
|
Choose which action to take when dragging and dropping a file from windows explorer on top of an existing file in the Data List.
| • | Replace removes the existing file from the data list and replaces it with the newly dropped file. |
| • | Insert before places the newly dropped file before the existing file in the data list. |
| • | Insert after - inserts the newly dropped file after the existing file in the data list. |
|
Double-click Options
|
Choose which of the following actions to take when double-clicking on a file in the Data List.
| • | Change all overlays on all objects to selected file. |
| • | Change all overlays on selected objects to selected file. |
| • | Change base overlay on all objects to selected file. |
| • | Change base overlay on selected objects to selected file. |
| • | Open new plot with selected file. |
|
