As shown in Figure T12.6, the Data Navigator is organized by the data files in the layout. Under each data filename, is the list of the plots which are using that data file. We will now explore the many features of the Data Navigator.

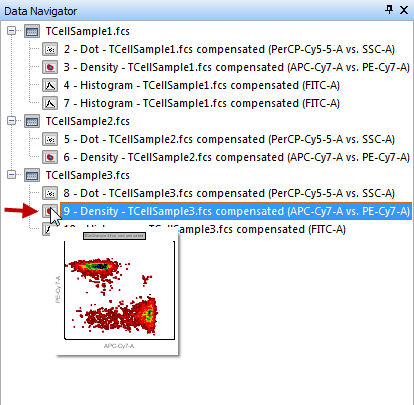

1.Hover the mouse over the 9 - Density – TCellSample3.fcs compensated (APC-Cy7-A vs PE-Cy7-A), under the data file listing for TCellSample3.fcs, within the Data Navigator, as indicated by the cursor in Figure T12.7.

A thumbnail image of the actual 2D plot will appear, as shown in Figure T12.7. This is a helpful quick reminder of which plot is associated with a data file, particularly if that plot is not currently visible. This feature applies to any of the plots listed in the Data Navigator.



Figure T12.7  Thumbnail Image of a 2D Plot on the Data Navigator

Figure T12.7  Thumbnail Image of a 2D Plot on the Data Navigator



We will now use the Data Navigator to change the data displayed in a 2D plot. We will replace the TCellSample1.fcs data in the 1D plot in the lower right of the layout with the TCellSample2.fcs data using just the Data Navigator.

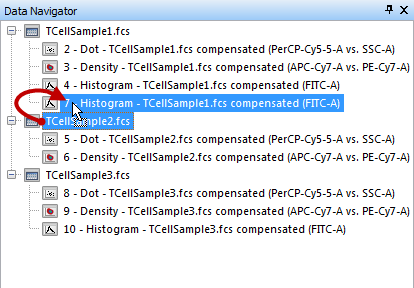

2.Place the cursor over data file TCellSample2.fcs in the Data Navigator, highlighted in blue in Figure T12.8.
3.Press and hold the left mouse button.
4.Drag the TCellSample2.fcs data file up to the plot listing 7 – Histogram – TCellSample1.fcs compensated (FITC-A), indicated by the cursor and highlighted in blue in Figure T12.8.
5.Release the mouse button when the TCellSample2.fcs data file is on top of the listing 7 – Histogram – TCellSample1.fcs compensated (FITC-A).



Figure T12.8  Dragging TCellSample2.fcs data file onto a 1D plot in the Data Navigator

Figure T12.8  Dragging TCellSample2.fcs data file onto a 1D plot in the Data Navigator

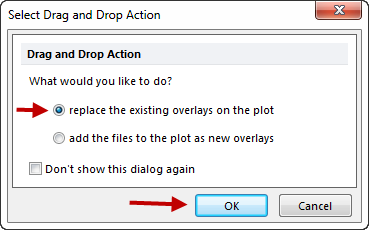

The Select Drag and Drop Action dialog appears, as shown in Figure T12.9.

6.Select replace the existing overlays in the plot (Figure T12.9).
7.Click OK.



Figure T12.9  Select Drag and Drop Action Dialog

Figure T12.9  Select Drag and Drop Action Dialog

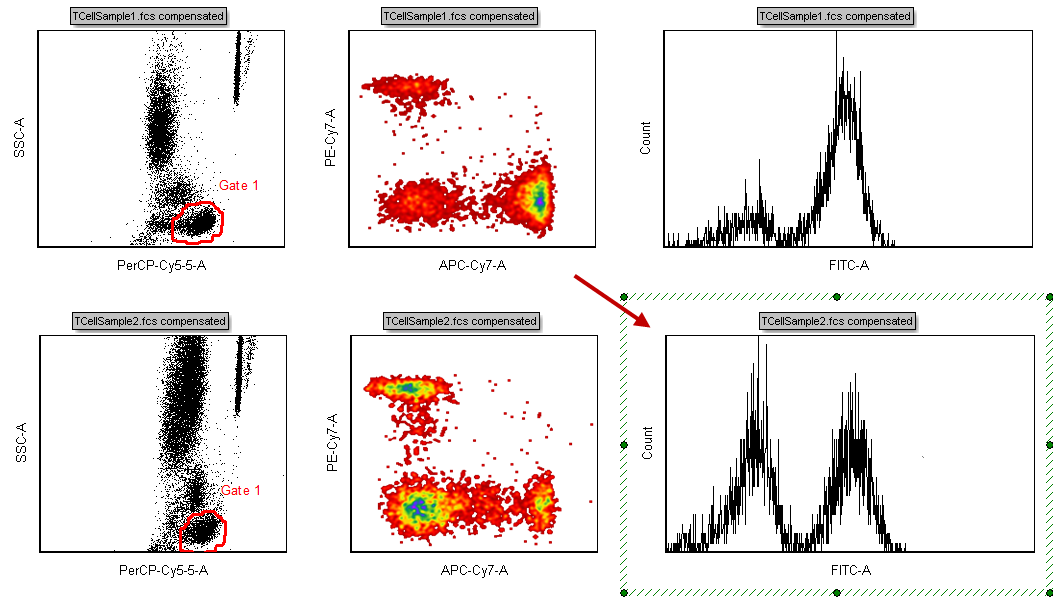

The 1D histogram in the lower right of the layout is now selected and updates to reflect the TCellSample2.fcs data, outlined in green in Figure T12.10.



Figure T12.10  Selected and Updated 1D Histogram with TCellSample2.fcs Data

Figure T12.10  Selected and Updated 1D Histogram with TCellSample2.fcs Data

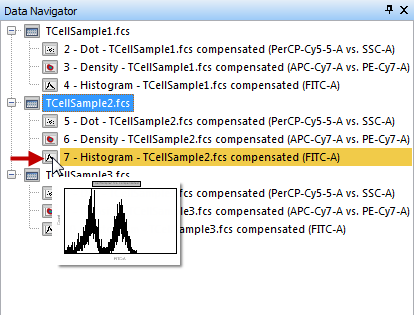

The Data Navigator is also updated to reflect the changes, as shown in Figure T12.11. The plot 7 – Histogram – TCellSample2.fcs compensated (FITC-A) appears under the TCellSample2.fcs data file listing, as indicated by the cursor and the thumbnail image in Figure T12.11.



Figure T12.11  Data Navigator Updated to Reflect TCellSample2 Plot Changes

Figure T12.11  Data Navigator Updated to Reflect TCellSample2 Plot Changes



We will now use drag and drop in the Data Navigator to overlay data on a histogram.

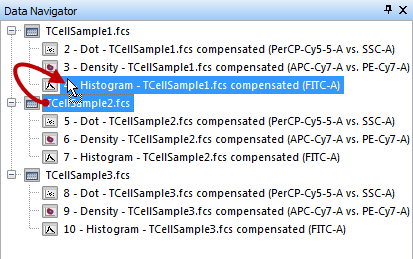

8. Place the cursor over data file TCellSample2.fcs in the Data Navigator, highlighted in blue in Figure T12.12.
9. Press and hold the left mouse button.
10. Drag the TCellSample2.fcs data file up to the histogram plot listing 4 – Histogram – TCellSample1.fcs compensated (FITC-A), indicated by the cursor and highlighted in blue in Figure T12.12.
11. Release the mouse button when the TCellSample2.fcs data file is on top of the histogram listing.



Figure  T12.12  Dragging TCellSample2 onto a Histogram Plot in the Data Navigator

Figure  T12.12  Dragging TCellSample2 onto a Histogram Plot in the Data Navigator



The Select Drag and Drop Action dialog appears, as previously shown in Figure T12.9. However, this time we will change the selection on the dialog to allow the data to be overlaid on the histogram.

12. Select "add the files to the plot as new overlays".
13. Click OK.

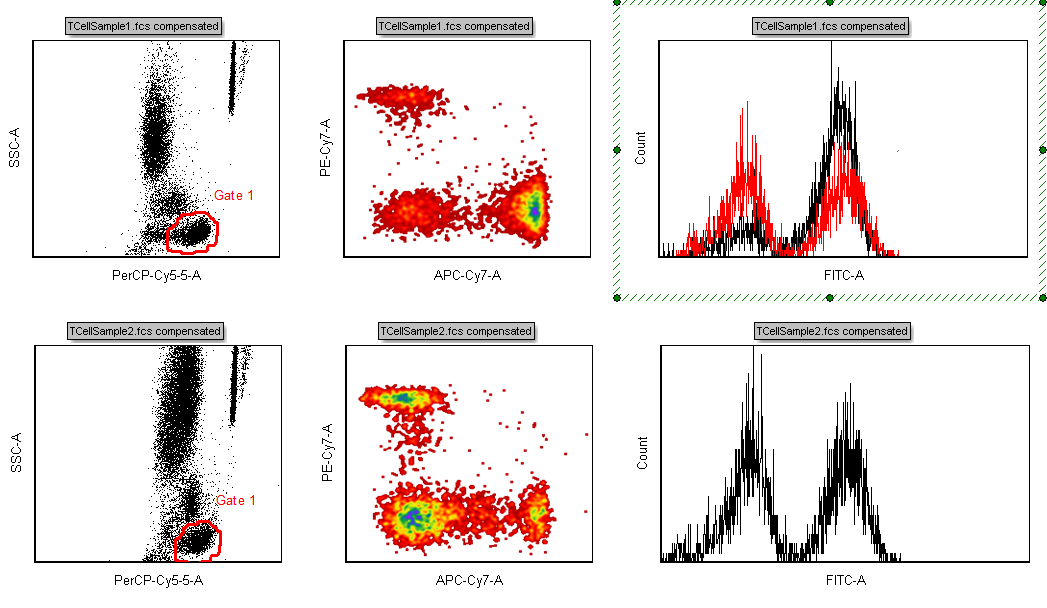

The histogram in the upper right of the layout is now updated to reflect the overlay of the ApoMono.002 data. The histogram plot is shown outlined in green and the new overlay data is shown in red in Figure T12.13.



Figure T12.13  Histogram Updated to Show the Overlay of TCellSample2 Data

Figure T12.13  Histogram Updated to Show the Overlay of TCellSample2 Data

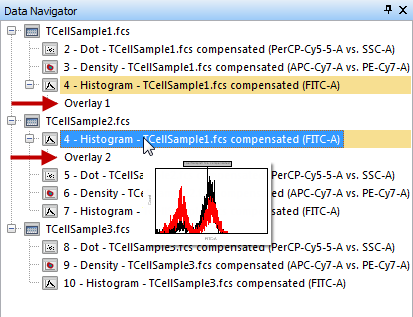

Again, the Data Navigator also updates to reflect the changes as shown in Figure T12.14. Under the data file listing for TCellSample2.fcs, a listing now appears for 4 – Histogram – TCellSample1.fcs compensated (FITC-A), as indicated by the cursor and the thumbnail image in Figure T12.14. The sub-listing Overlay 2 also appears under the histogram listing to indicate that the data file TCellSample2.fcs is the second overlay on the TCellSample1.fcs histogram. Note that under the TCellSample1.fcs data file listing, the histogram 4 – Histogram – TCellSample1.fcs compensated (FITC-A) listing has also been updated with the sub-listing Overlay 1 to indicate that the data ApoMono.001 is the base data.



Figure T12.14  Updated Data Navigator with Overlay of TCellSample2 Data

Figure T12.14  Updated Data Navigator with Overlay of TCellSample2 Data



All the previous actions of dragging and dropping data in the Data Navigator could also have been done using the Data Navigator pop-up menu. We will now use the Data Navigator pop-up menu to add data as another overlay to the histogram in the upper right of the layout.

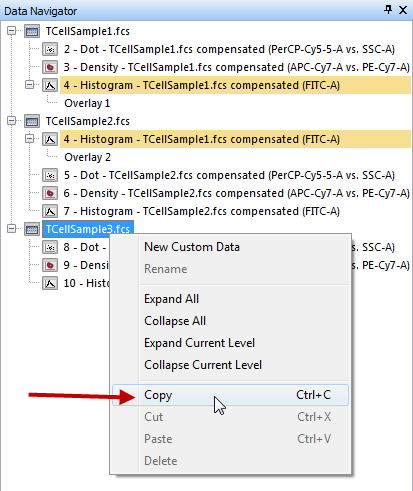

14. Place the cursor over the TCellSample3.fcs data file listing on the Data Navigator, shown highlighted in blue in Figure T12.15.
15. Right-click to bring up the associated pop-up menu.
16. Select Copy from the pop-up menu, indicated by the cursor in Figure T12.15.



Figure T12.15  Copy Using Data Navigator Pop-up Menu

Figure T12.15  Copy Using Data Navigator Pop-up Menu

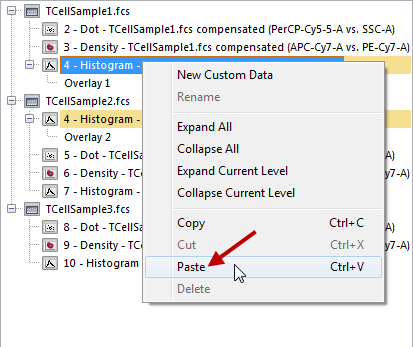

17. Place the cursor over the listing 4 – Histogram – TCellSample1.fcs compensated (FITC-A) listed under TCellSample1.fcs data on the Data Navigator, shown highlighted in blue in Figure T12.16.
18. Right-click to bring up the associated pop-up menu.
19. Select Paste from the pop-up menu, indicated by the cursor in Figure T12.16.



Figure T12.16  Paste Using Data Navigator Pop-up Menu

Figure T12.16  Paste Using Data Navigator Pop-up Menu



The Select Drag and Drop Action dialog appears, as previously shown in Figure T12.9. However, we will change the selection on the dialog to allow the data to be overlaid on the histogram.

20. Select "add the files to the plot as new overlays".
21. Click OK.

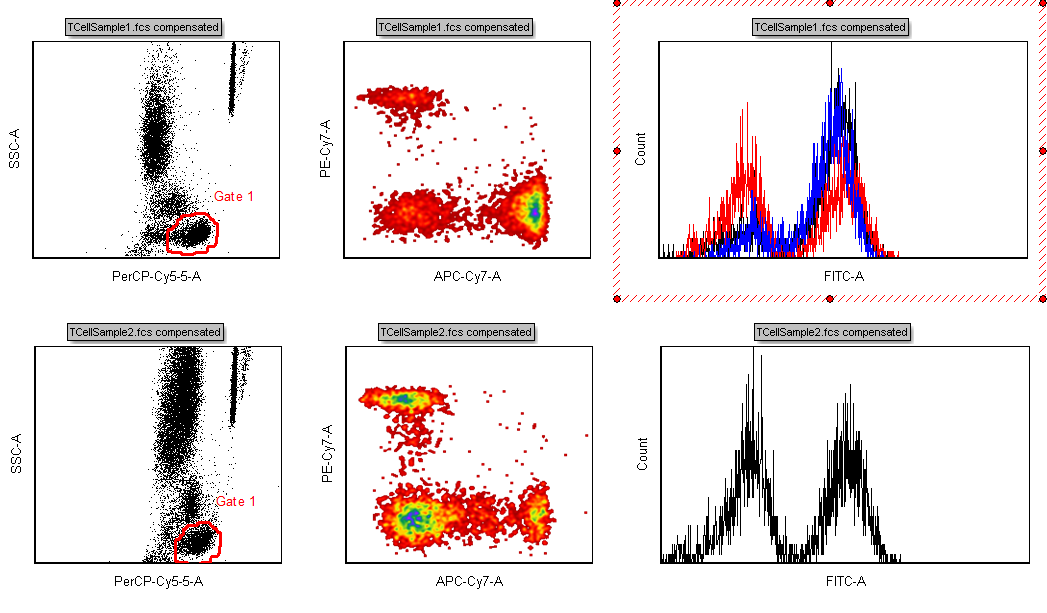

The histogram in the upper right of the layout is now updated to reflect the overlay of the ApoMono.003 data. The histogram is shown outlined in green and the new overlay data is shown in blue in Figure T12.17.



Figure T12.17  Histogram Updated to Show the Overlay of TCellSample3 Data

Figure T12.17  Histogram Updated to Show the Overlay of TCellSample3 Data

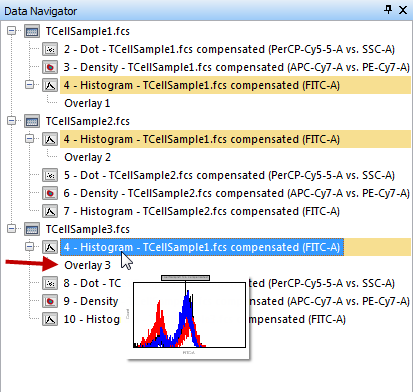

Again, the Data Navigator updates to reflect the changes as shown in Figure T12.18. Under the data file listing for TCellSample3.fcs, a listing now appears for 4 – Histogram – TCellSample1.fcs compensated (FITC-A), as indicated by the cursor and the thumbnail image in Figure T12.18. The sub-listing Overlay 3 also appears under the histogram listing to indicate that the data file TCellSample3.fcs is the third overlay on the TCellSample1.fcs histogram.



Figure T12.18  Updated Data Navigator with Overlay of TCellSample3 Data

Figure T12.18  Updated Data Navigator with Overlay of TCellSample3 Data



We can also drag and drop data from the Data Navigator to either replace or overlay data within the plots on the pages of our layout.

We will drag a data file from the Data Navigator onto a plot on the layout. On the layout, the dot plot of SSC-A vs. PerCP Cy5.5-A, in the lower left corner of Page 1, is using the data TCellSample2.fcs. We will overlay that with TCellSample1.fcs data.

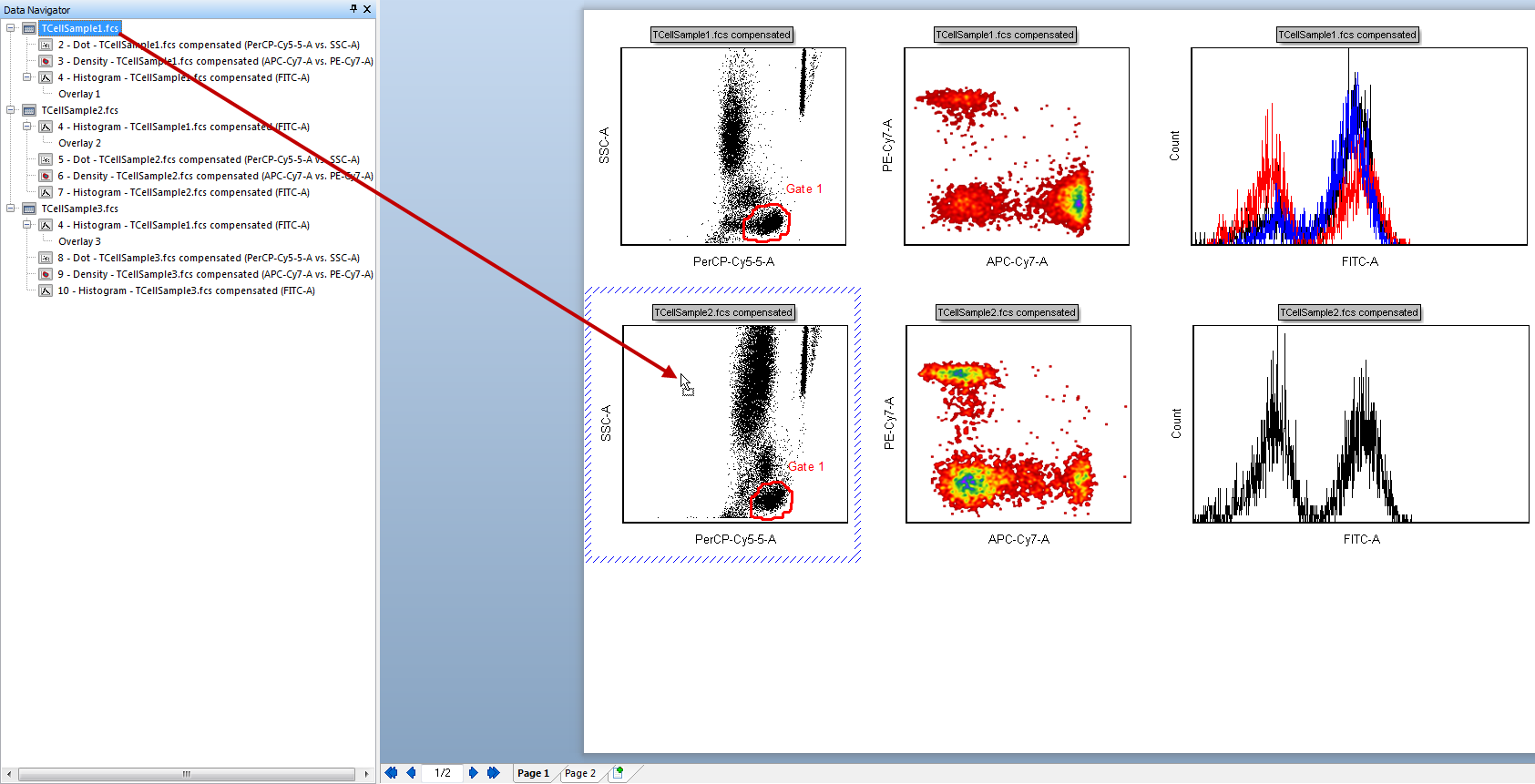

22. Place the cursor over data file TCellSample1.fcs in the Data Navigator, highlighted in blue in Figure T12.19.
23. Press and hold the left mouse button.
24. Drag the data file TCellSample1.fcs onto the layout.
25. Release the mouse button when TCellSample1.fcs is on top of the dot plot of SSC-A vs. PerCP Cy5.5-A, in the lower left corner of Page 1, indicated by the cursor and outlined in blue in Figure T12.19.
26. In the Select Drag and Drop Action window, select add the files to the plot as new overlays.



Figure T12.19  Dragging and Dropping TCellSample1 from the Data Navigator onto the Dot Plot on the Layout

Figure T12.19  Dragging and Dropping TCellSample1 from the Data Navigator onto the Dot Plot on the Layout



Both the dot plot on the layout, in the lower left, and the Data Navigator have updated to reflect the data change, as shown in Figure T12.20. The cursor and thumbnail image, shown in Figure T12.20 indicate the changes in the Data Navigator.



Figure T12.20  Updated Layout and Data Navigator with TCellSample1 Overlay

Figure T12.20  Updated Layout and Data Navigator with TCellSample1 Overlay



In addition to dragging the data file from the Data Navigator and dropping it onto the dot plot on the layout, we could have used the Data Navigator pop-up menu to copy the data object, and then used the pop-up menu on the layout to paste the data onto the dot plot. Just like all the other pop-up menus, the Data Navigator pop-up menus are accessed by right-clicking when the cursor is located over an item in the Data Navigator. We will now use the Data Navigator pop-up menu to insert a new data plot onto the layout.



26. Place the cursor over TCellSample3.fcs in the Data Navigator.
27. Right-click to bring up the associated pop-up menu.
28. Select Copy from the pop-up menu, as previously shown in Figure T12.15.
29. Click on Page 2 at the bottom of the layout, as shown in Figure T12.21.



Figure T12.21  Selecting Page 2

Figure T12.21  Selecting Page 2

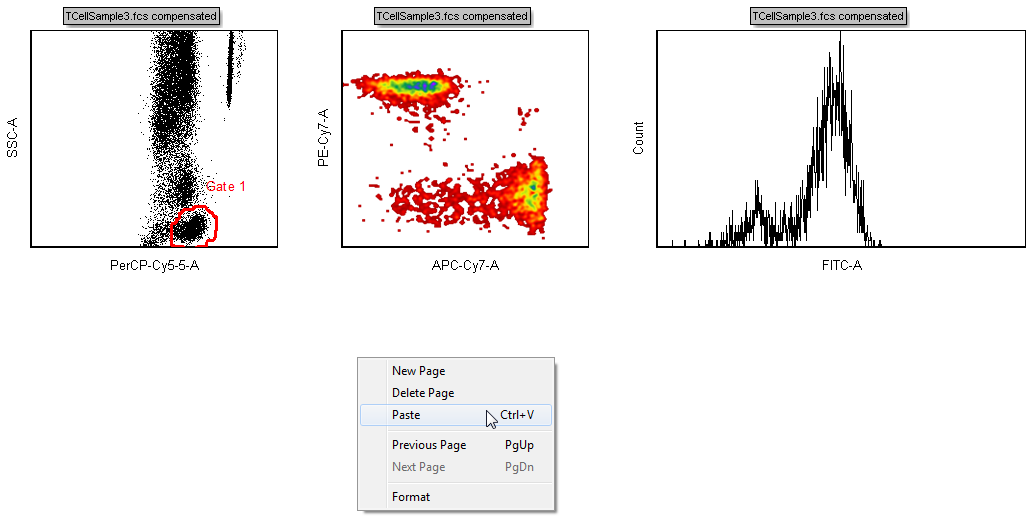

Page 2 of the layout will now appear as shown in Figure T12.22.

30. Place the cursor on an empty part of the layout.
31. Right-click to bring up the associated pop-up menu, shown in Figure T12.22.
32. Select Paste from the pop-up menu.



Figure T12.22  Page 2 of the Layout with the Pop-up Menu

Figure T12.22  Page 2 of the Layout with the Pop-up Menu

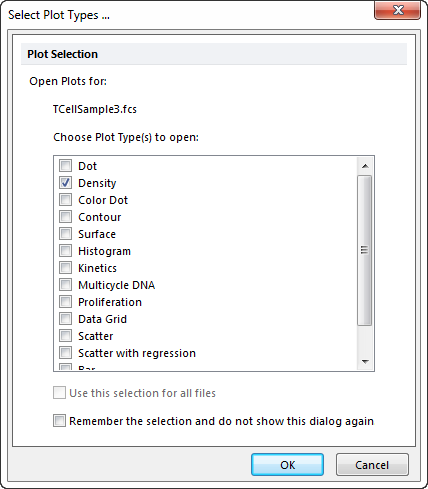

The Select Plot Types… dialog appears, as shown in Figure T12.23.

33. Select Density as the types of plots to open (Figure T12.23).
34. Click OK.



Figure T12.23  Select Plot Types... Dialog

Figure T12.23  Select Plot Types... Dialog

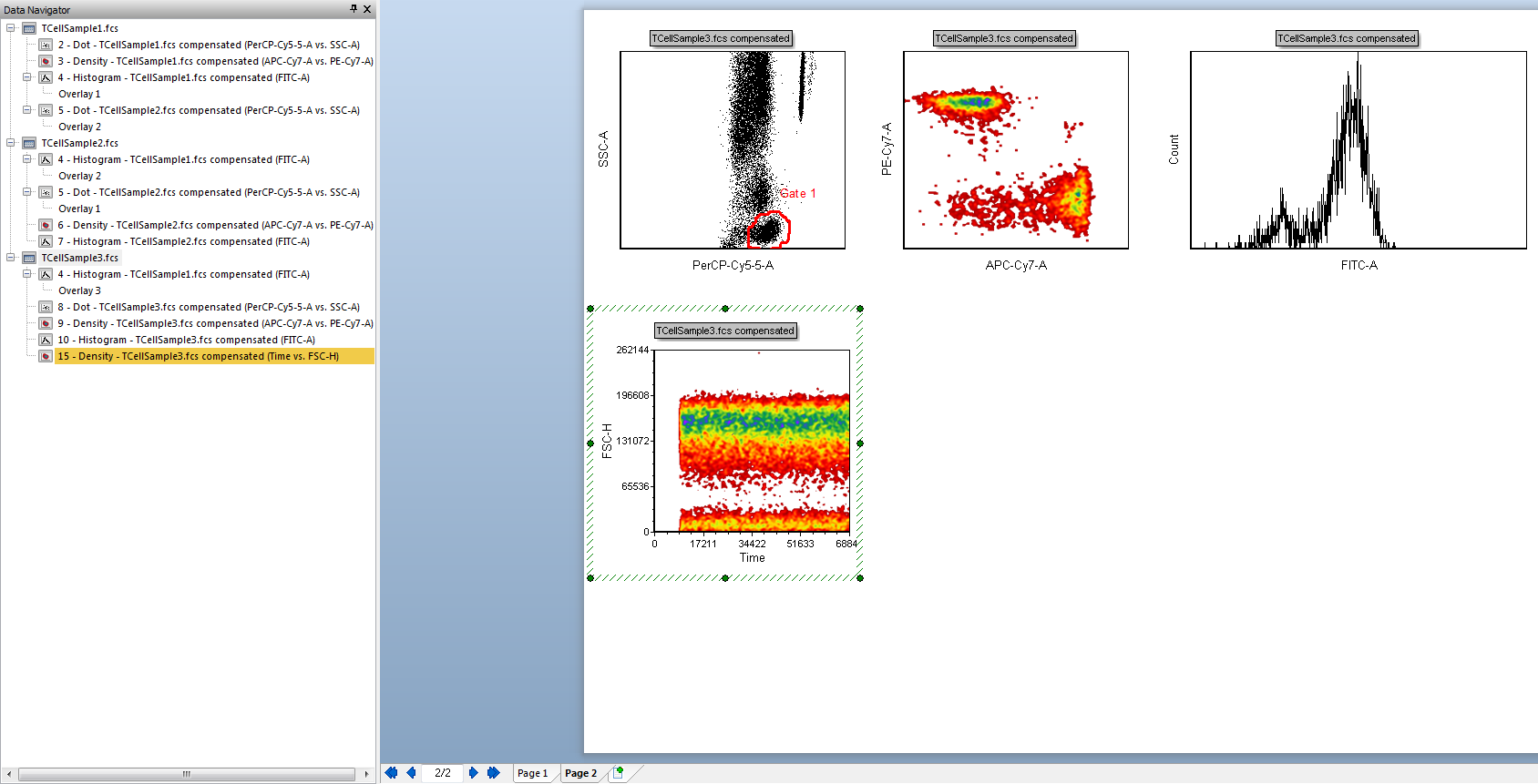

A density plot of TCellSample3.fcs appear, using the default parameters of  Time vs. FSC-H, as shown in Figure T12.24.  Feel free to format this plot any way you wish.





Figure T12.24  Contour Plot of TCellSample3.fcs Data

Figure T12.24  Contour Plot of TCellSample3.fcs Data
