Editing Keyword Tokens
Contents
When you insert or edit a Keyword token, the following properties need to be set:
| • | Use the Display Text category of the Create Keyword dialog to choose a token value (default), description, or user-defined text to display in the token. |
| • | Use the Data Source category of the Create Keyword dialog to select the plot or FCS file as a source of data for the token. |
| • | Use the Keyword page of the Create Keyword dialog to edit the keyword that will be displayed (Figure 19.13). Note: Because the Keyword options differ depending on the Data Source, you must select the Data Source before you can navigate to the Keyword page. |

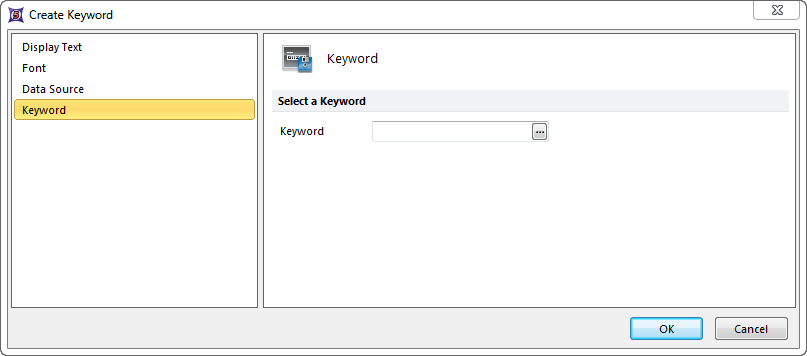

Figure 19.13 Keyword Properties
| • | Select a keyword. Click on the ellipsis to display the scrollable Please select a keyword dialog (Figure 19.<%19F++++%>). Click on the Keyword you want to display, and then click OK to return to the Create Keyword dialog. Click OK to complete the Keyword edit or insert procedure. |

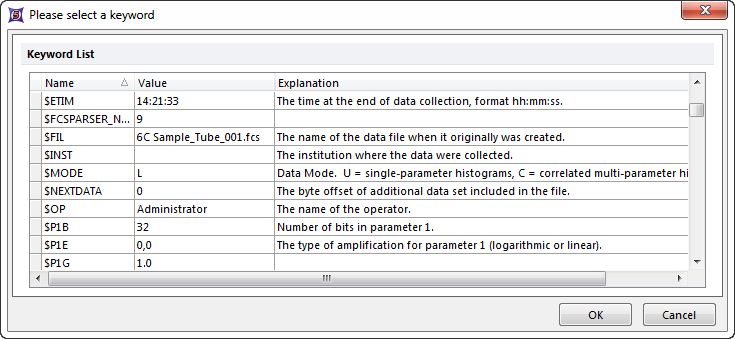

Figure 19.<%19C++++%> Select a Keyword
For more information regarding Keywords, please watch our YouTube video that goes into greater detail about what Keywords are and how to use them within your analysis layout.
