The Advanced Open Data Dialog can be accessed when selected in user preferences for Open Data Dialog through the following actions:



•creating statistics,



•editing statistics,



•adding files to the Data List, or



•changing data by using Data tab→Change Data on Selection or Change Data on All Objects group→Select drop down list command (Figure 8.33).

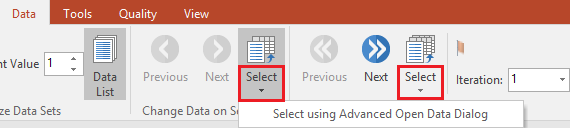

Figure 8.33 - Select command outlined in red from Change Data groups within Data tab on ribbon

Figure 8.33 - Select command outlined in red from Change Data groups within Data tab on ribbon



and when Standard Open Data Dialog for All Overlays is set as the preference for Open Data Dialog:



•changing data by using Data tab→Change Data on Selection or Change Data on All Objects group→Select drop down list command (Figure 8.34).

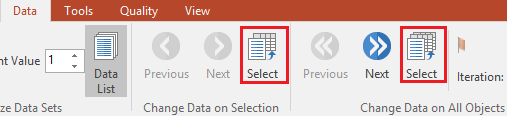

Figure 8.34 - Select dropdown command outlined in red from Change Data groups within Data tab on ribbon

Figure 8.34 - Select dropdown command outlined in red from Change Data groups within Data tab on ribbon
