Position Markers can be displayed on Proliferation histograms to mark the position of the undivided cells peak and/or the background region.



To format proliferation position markers:



1. Right-click on the Proliferation histogram.



2. Choose Format from the pop-up menu.



3. Click on the triangle next to Proliferation to expand the category.



4. Select the Position Markers category.



5. To make the position marker for a specific peak, select the peak and check the box for Show position marker on the plot.





Select the Undivided cells peak and/or Background properties from the list box on the left (Figure 26.3) and choose line options for the selected markers on the right.

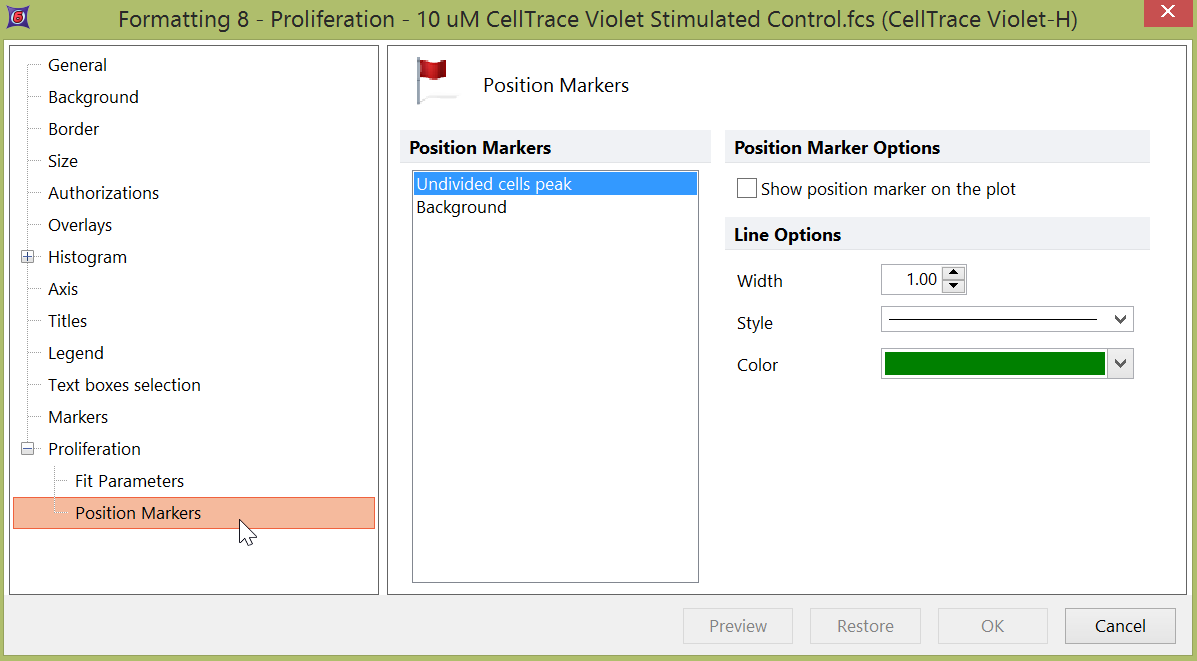

Figure 26.3  Formatting Proliferation Position Markers

Figure 26.3  Formatting Proliferation Position Markers
