Gating and Backgating on Spectrum Plots

Gates may be created on and applied to Spectrum Plots, much like any other plot type in FCS Express.



Gating and backgating each work bidirectionally between Spectrum Plots and other plot types.  In other words, gates can be:

•created on Spectrum Plots and applied to / backgated onto other plot types (Figure 28.6)

•created on other plot types and applied to / backgated onto Spectrum Plots (Figure 28.7)

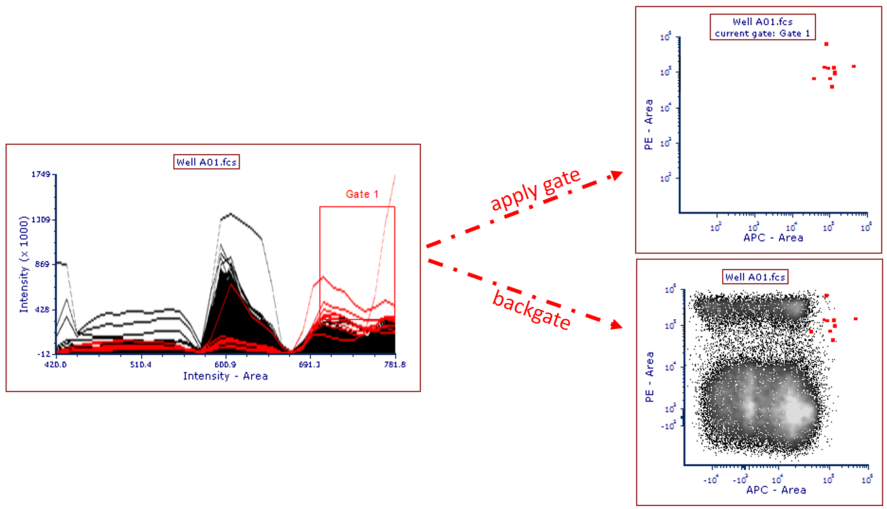

Figure 28.6 - Gate created on Spectrum Plot and applied or backgated onto a Color Dot Plot.

Figure 28.6 - Gate created on Spectrum Plot and applied or backgated onto a Color Dot Plot.

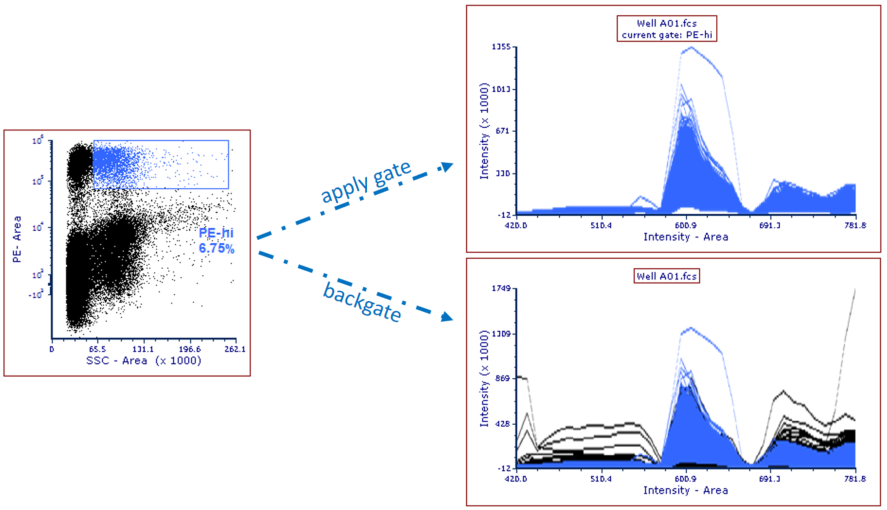

Figure 28.7 - Gate created on Color Dot Plot and applied or backgated onto a Spectrum Plot.

Figure 28.7 - Gate created on Color Dot Plot and applied or backgated onto a Spectrum Plot.
