In Kinetics analysis, the X-axis value is Time. Cells are usually stimulated by adding one or more drugs after a baseline is established at the beginning of the experiment.



Kinetics plots are a special subset of one dimensional plot that automatically average all of the Y-axis values per unit of Time and displays one dot (chosen from Mean, Geometric Mean, Median or %  Above Threshold) for each X-axis value (along with the option of displaying the standard deviation of the Y-axis value in color).



To insert a Kinetics plot, use the Insert→1D Plots→Kinetics command. If necessary, change the X-axis parameter to Time and format the X-axis range or resolution to suit your experiment (right-click on the histogram, choose Format from the pop-up menu, and select the Axis page to adjust the range or the Kinetics Options→Binned Plot Specific Options category to set the resolution).

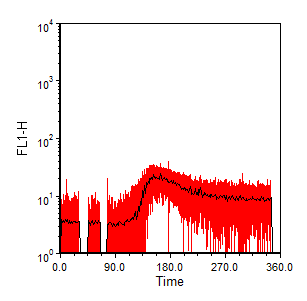

An example of a Kinetics plot is shown in Figure 27.1.
