The 1D Plot Statistics options (Figure 8.16) determine the default visibility and display for 1D plot statistics.

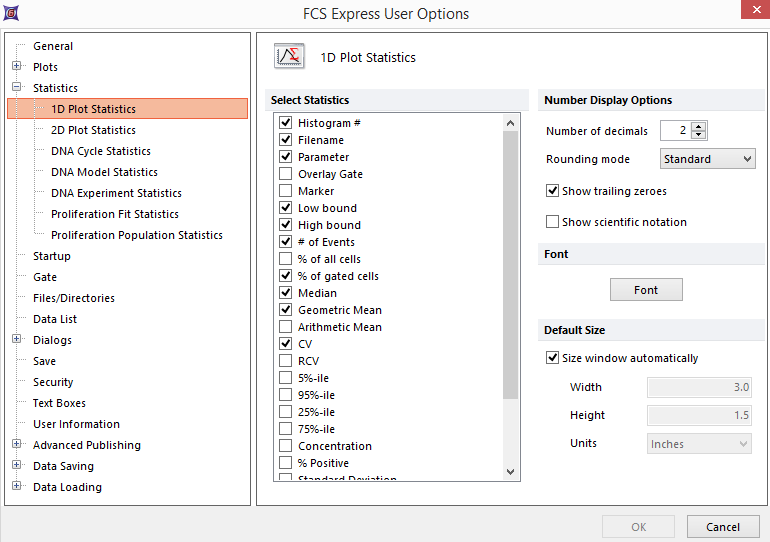

Figure 8.16  1D Plot Statistics Options

Figure 8.16  1D Plot Statistics Options





The options are explained in the table below.



Option

Explanation

Select Statistics

The checkbox determines whether or not statistic items are displayed when a statistics window is first opened. The individual statistics items are explained in the statistics section of the chapter on analysis of FCS data.

Number Display Options

•Number of decimals indicates the number of decimal places listed to the right of any decimal point.

•Rounding mode indicates the method for rounding the last digit.  Options include Standard, Down, Up, and Truncate.

•Show trailing zeroes, if checked, shows the specified number of decimals even if the terminal digits are zeroes.

•Show scientific notation, if checked, shows the number in E notation: mEn which represents m x 10n, where m and n are any real number and E represents "exponent"

Font

The default font to use when displaying the statistics.

Default Size

Sets the default size of the statistics window. If Size window automatically is checked, size will automatically adjust if data is added that extends beyond the window borders.
