The Keyword Dialog is used throughout FCS Express whenever you are required to select a keyword. For instance, keywords can be selected for insertion in plot titles and in text boxes as keyword tokens.

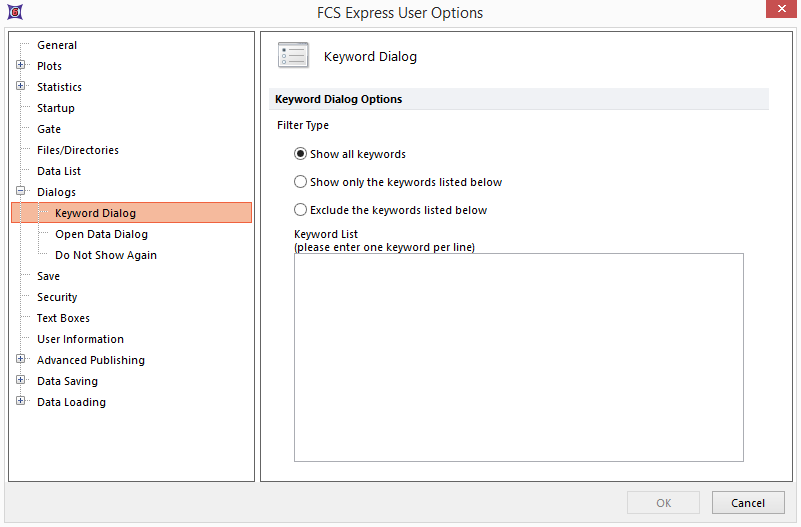

Since many keywords can be present for a data file, the Dialogs→Keyword Dialog FCS Express User Options allow you to specify which keywords appear in the keyword dialog (Figure 8.28), providing the user with the opportunity to filter on the keywords that are used the most.





You can choose one of the following:



•Show all keywords.



•Show only keywords in the Keyword Filter List.



•Show all keywords except those appearing in the Keyword Filter List.



If you do not choose Show all keywords, you must enter keywords into the Keyword Filter List list box. Enter one keyword per line. Case/capitalization are ignored. You can also use the wild card "*" to denote any characters. For instance, to only display keywords starting with the letter "P", first select the Show only the keywords listed below option, and then type in "P*" in the keyword list.
