All of the Kinetics statistics can be used as tokens. Kinetics tokens can be inserted into text boxes, used in Custom Token or Alert formulas, and exported to reports during batch processing.



To insert a Kinetics statistics token into a text box:



1. Insert a text box using the Insert→General→Text Box command.

2. Right-click on the text box and select Insert Token.

3. Choose Statistic and click on the Insert button to bring up the Create Statistic dialog.

4. Choose a Kinetics plot as a Data Source.

5. Choose the Statistic category.

6. Choose Kinetics Statistics from the Select a Statistic drop down.

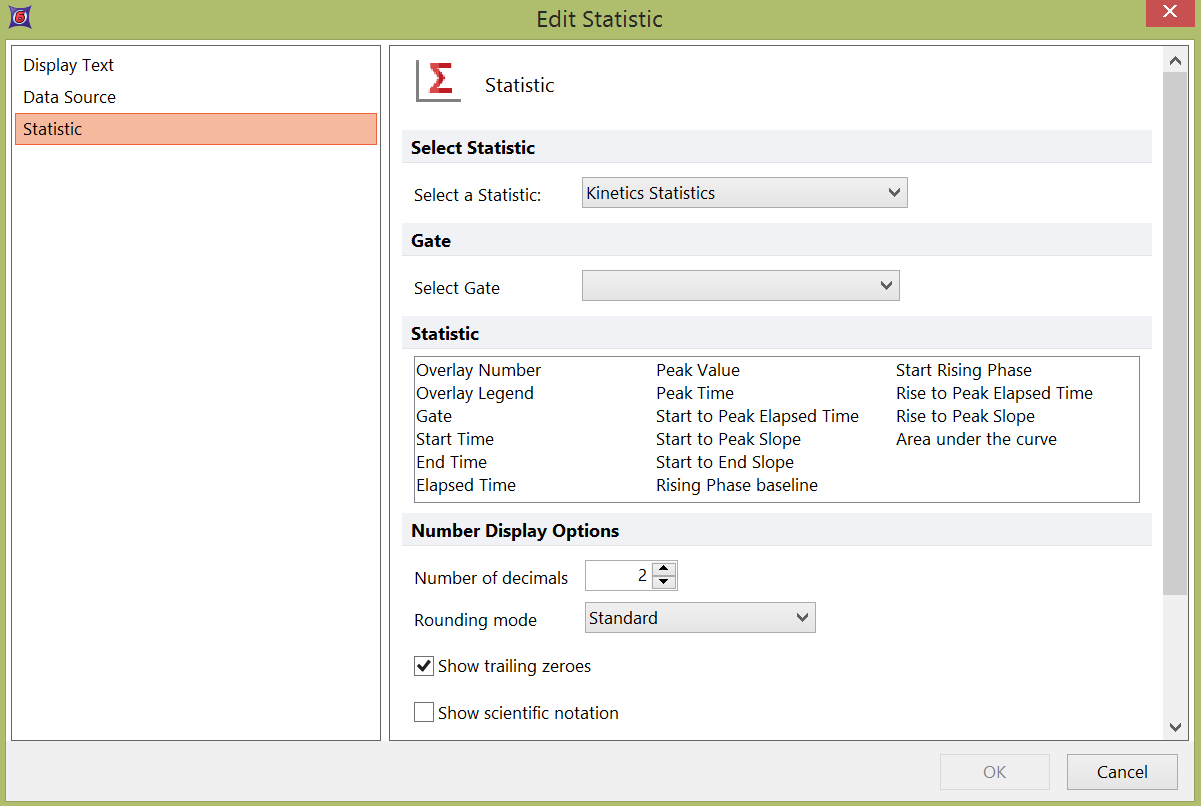

7. Select the Gate, if any, (Figure 27.5). Choose one or multiple statistics from the list box, then click OK.
