In the course of this example, we will:

•Learn how to set up a panel.

•Learn how to set up a file list with the experimental files to be analyzed.



In this tutorial we will be analyzing 2 samples, each comprised of a set of 2 tubes. The panel will consist of the tubes that comprise the "set", which will repeat itself.

We will begin by defining the panel and then setting up the data list.

1.File tab→New.

2.Select the Batch & Export tab→Organize Data Sets→Panels command . Alternatively, select the Data tab→Organize Data Sets→Panels command .

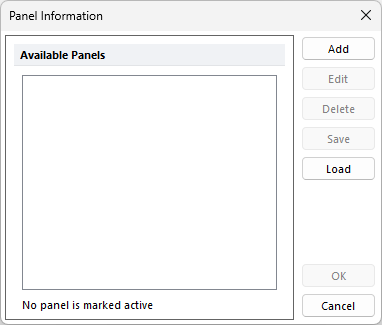

The Panel Information dialog opens (Figure T11.2).

3.Click the Add button.

The Add Panel dialog will appear as shown in Figure T11.3.

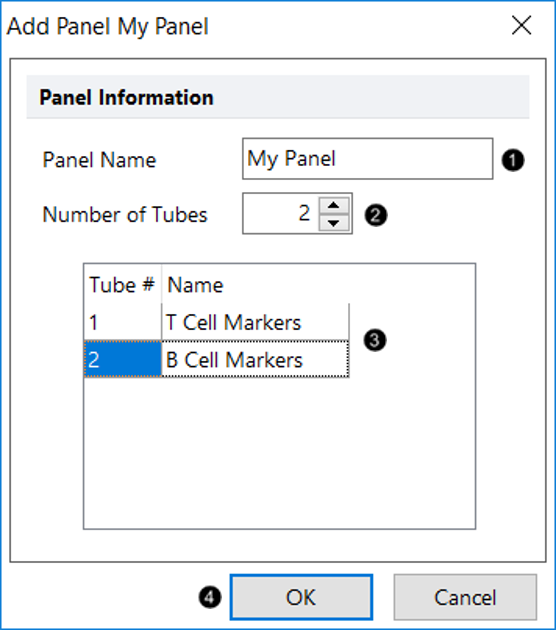

4.Enter "My Panel" in the Panel Name field (Figure T11.3, ).

5.Click on the upward triangle twice in the Number of Tubes spin control or enter 2 (Figure T11.3, ).

6.In the Name column, name Tube #1 "T Cell markers" and Tube #2 "B Cell markers" (Figure T11.3, ).

7.Click OK to close the Add Panel dialog (Figure T11.3, ).

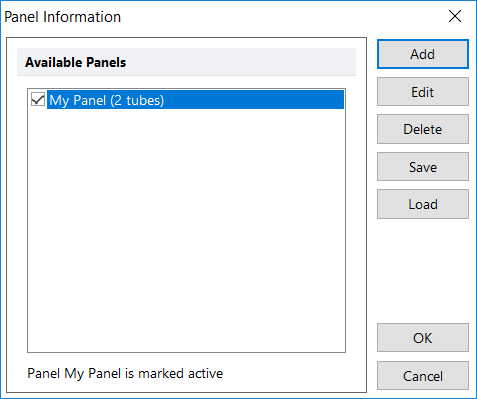

The Panel Information dialog will now appear updated with the newly added panel information, as shown in Figure T11.4.

8.Click OK to close the Panel Information dialog (Figure T11.4).

The next step consists of using the Data List to set up a list of the files we want to analyze using the panel.

9.Select the Data tab→Organize Data Sets group→Data List command (Figure T11.5). Alternatively, select the Batch→Organize Data Sets→Data List command .



A Data List window opens.

10. Click the Add button on top of the Data List window and choose Add Data File to add files (Figure T11.6).

The Select data file dialog opens (Figure T11.7).

11. Navigate to where the Tutorial Sample Data folder is located.

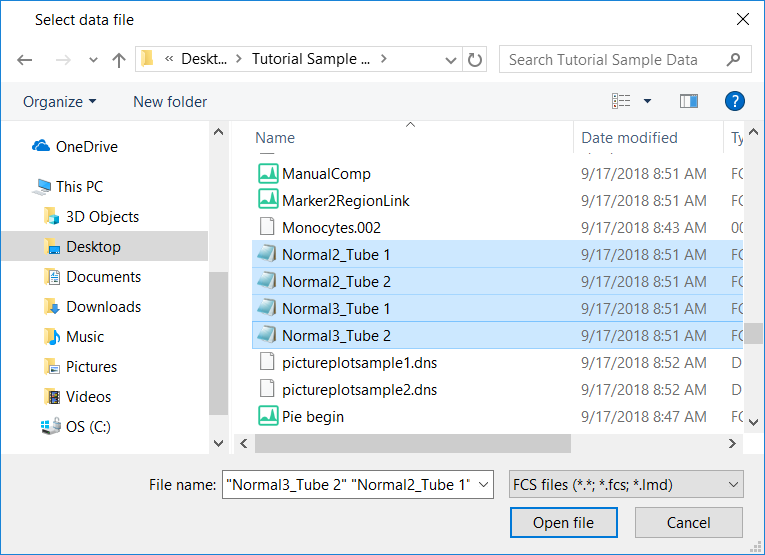

12. Multiple-select the 4 files named: Normal2_Tube1, Normal2_Tube2, Normal3_Tube1 and Normal3_Tube2 as shown in Figure T11.7.

13. Click Open file (Figure T11.7).

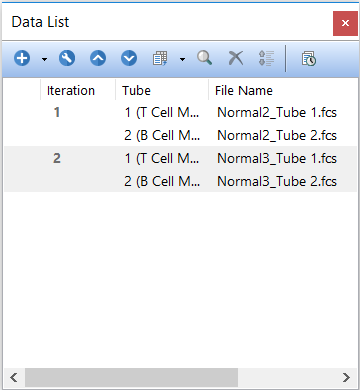

The Data List window now lists the data files selected, each with its Iteration number, Tube from the panel, and File Name displayed. The Data List should appear as shown in Figure T11.8.

As shown in Figure T11.8, the Data List window shows the tubes from the panel you created in the left column, and the files you added in the right column. This greatly helps to organize your files into the corresponding tubes for further analysis. To further aid organizing the data files, FCS Express allows you to add keywords from the FCS file to the information displayed in the Data List. Keywords that are descriptive indicators of sample identification can be added to the Data List to easily  identify which data files corresponds to each entry in the Data List.  There are many keywords that can be used to help identify the data files within the Data List.  In this tutorial, we will add the keyword $SRC to the Data List.

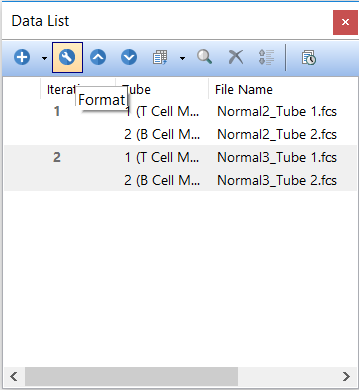

14. Click on the Format button at the top of the Data List (Figure T11.9).

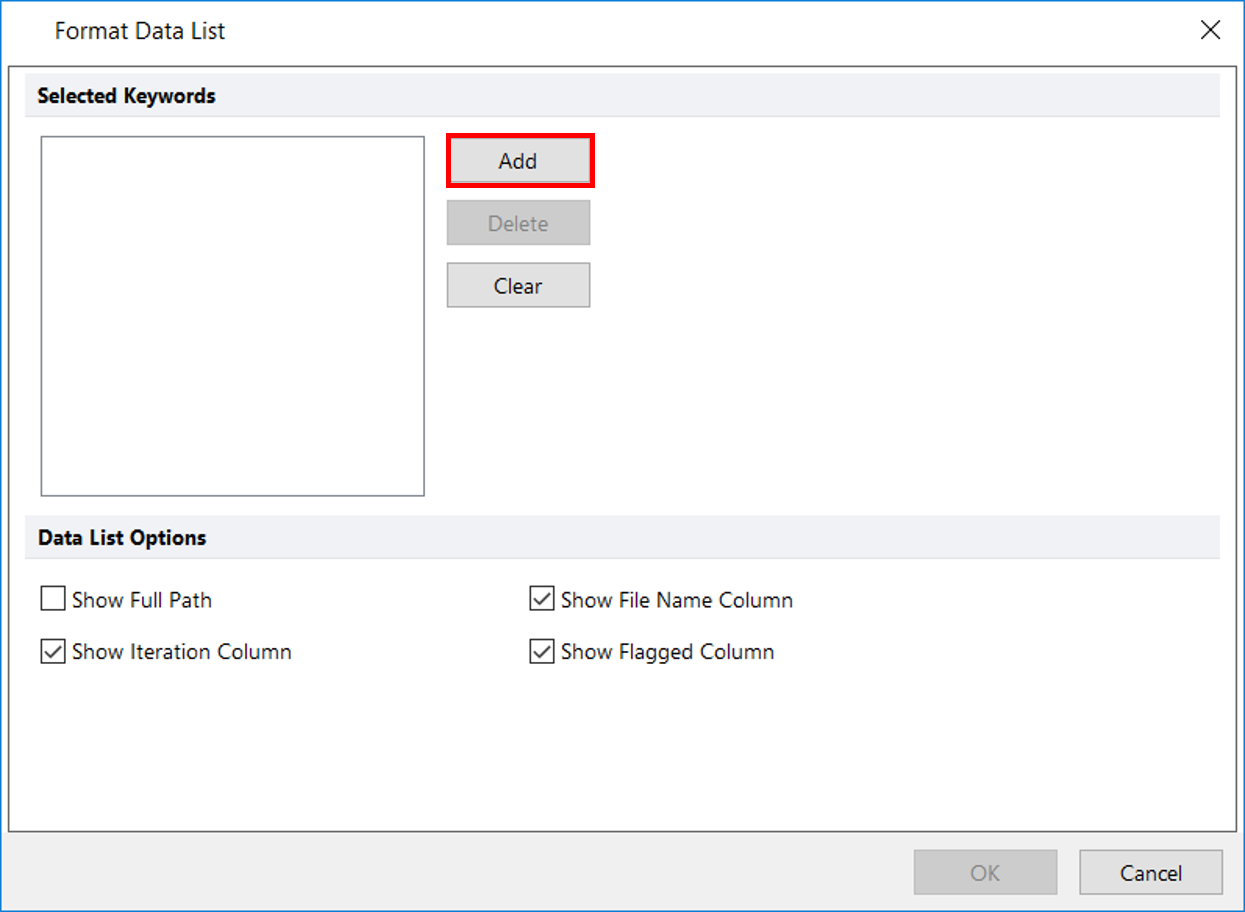

15.Select Add from the Format Data List dialog (Figure T11.10, red outline).

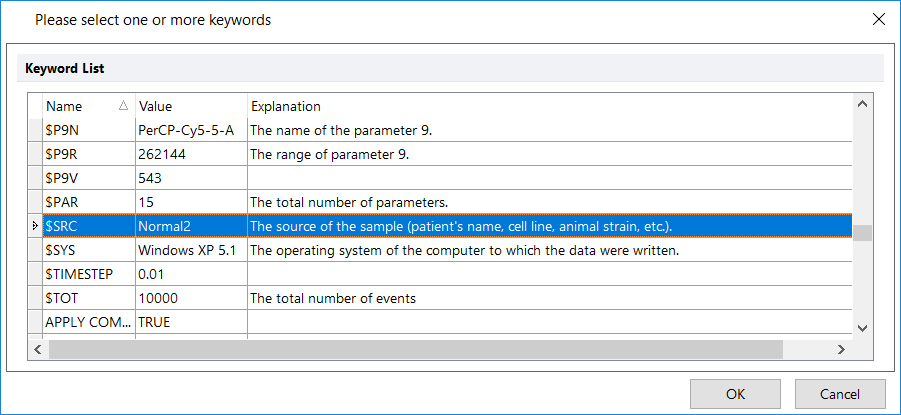

The Please select one or more keywords dialog appears, as shown in Figure T11.11. This is where we will select the keyword $SRC to display in the Data List.

17. Click on the down arrow to scroll down to the bottom of the list.

18. Click on $SRC, highlighted in Figure T11.11. If you want to display more than one keyword, you can select multiple adjacent keywords by holding down the Shift key on the keyboard or by selecting multiple non-adjacent keywords by holding down the Cmd key while clicking on each keyword. For this example, we will only select $SRC.

19. Click OK (Figure T11.11).

The Format File List dialog will be updated with $SRC in the Selected Keywords field, as shown in Figure T11.11.  The Data List can also be formatted to display your data in Groups.

20.  Select OK in the Format Data List dialog.

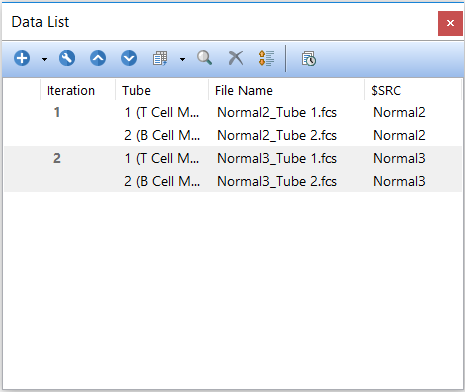

The Data List dialog will now appear updated showing the grouping of the data files, the file name without the full path and with the column $SRC, as shown in Figure T11.12.



   21.  Proceed to the next section to create a layout or save this layout to be used at a later time.

You can use the icons at the top of the Data List dialog, (Figure T11.12) to manipulate the data files in the list.

As previously demonstrated, you can add more files to the Data list by selecting the Add button and you can format the list to include FCS keywords by selecting the Format button . To move a file up or down in the Data List select the data file and then select the Up or Down arrows. To change a file, select the Change File button ,  and to search for a file select the Search button . To delete a file from the list, select the file, and then select the Delete button .  In addition to manually organizing the list or using a single column to sort data files, you may use the Sort on All Keywords button to sort on all keywords displayed across the columns.

In a previous version, FCS Express 4, any changes made to the order of the tubes in the Data List would automatically change in which plots those data files were being viewed as they are being moved.  If your files are large, it could take some time for your layout to refresh as each tube is moved up or down the Data List. However, in FCS Express, the user can now defer those changes until the files have been moved and placed in the required order. By clicking the Defer Layout Changes icon , the user can makes changes to the order of tubes, then, deselect the icon and the data would automatically refresh in the analysis layout.



We will now proceed to creating the layout.
