FCS Express also allows you to view your histogram in 3D, which will be completed using the layout from the previous section.



In the course of this example ,we will:

•Acquire an overview of the 3D options.

•Turn 3D on.

•Change the 3D percent.

We will use the histogram shown in Figure T3.30.

1.If Formatting dialog is not open, double-click histogram.

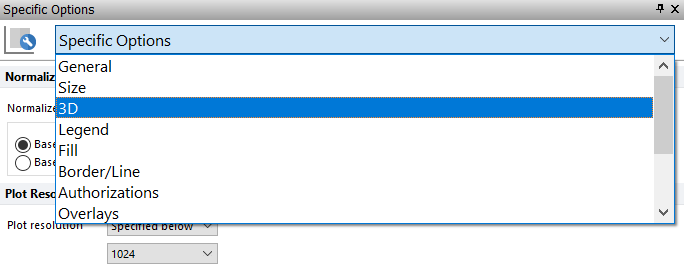

a.If open, select 3D category (Figure T3.34, blue highlighted text).

2.Check box next to View in 3 Dimensions (Figure T3.35, ).

3.Change the 3D % to 100% (Figure T3.35, ). Use arrow keys if needed after clicking slider to adjust more easily.

4.Adjust the Zoom slider to 85% (Figure T3.35, ). Use arrow keys if needed after clicking slider to adjust more easily.

5.Adjust the Vertical offset slider to approximately 10% (Figure T3.35, ). Use arrow keys if needed after clicking to adjust more easily.



The plot before modification Figure T3.36.

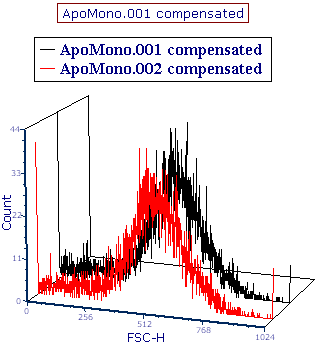

The plot should now resemble Figure T3.37.
