Deleting Gates
Contents
A gate can be deleted in one of two ways:
| • | Select the gate from a Gate View object and either: Right-click and choose Remove from the pop-up menu, as seen in Figure 1; press the Delete key on the keyboard; or select the Home→Editing→Delete command. |

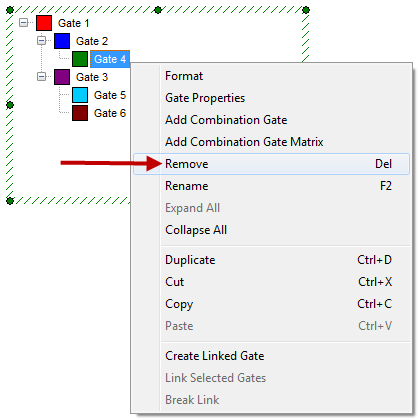

Figure 1 - Removing a Gate from the Gate View
| • | A gate can also be deleted directly from the plot. To delete a gate, click the mouse button when the cursor is in the gate you wish to delete. This will activate the gate. The cursor will then change to the drag cursor and resizing handles will appear on the vertices of the gate. Press the Delete key or select the Home→Editing→Delete command. A dialog box will appear asking whether you want to delete the gate completely, or just hide the gate on that plot, as seen in Figure 2. |

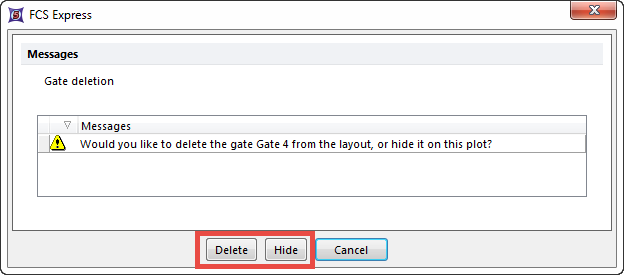

Figure 2 - Delete or Hide a Gate
