Gate tokens display information related to the gates on the Layout. To see the list of available gate tokens:



1. Right-click on a Text Box.
2. Select Insert Token from the pop-up menu.
3. Click on the triangle next to Gate on the Insert a Token dialog (Figure 19.17).

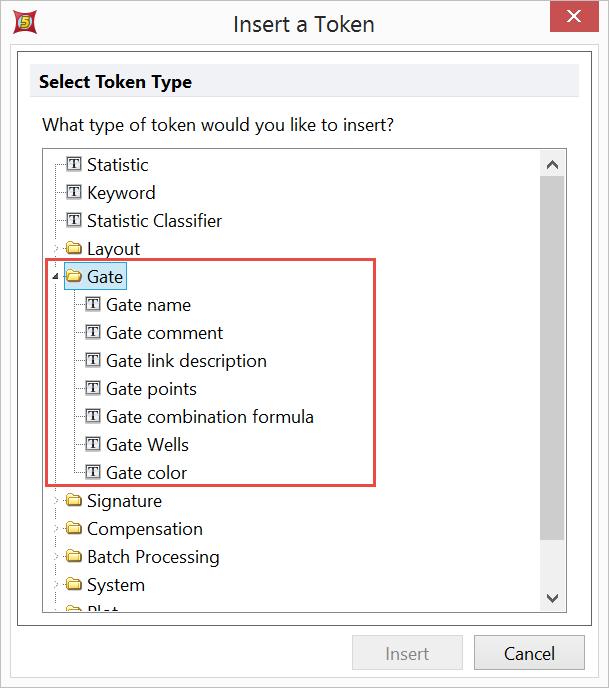

Figure 19.17  Choose a Gate Token

Figure 19.17  Choose a Gate Token



4. Select a Gate token and click the Insert button.  Or, double-click the Gate token.





When you insert or edit a Gate token, the Create Gate Token dialog appears.



Use the Display Text page of the Create Gate Token dialog to choose a token value (default), description, or user-defined text to display in the token.



Use the Gate information page (Figure 19.18) to:

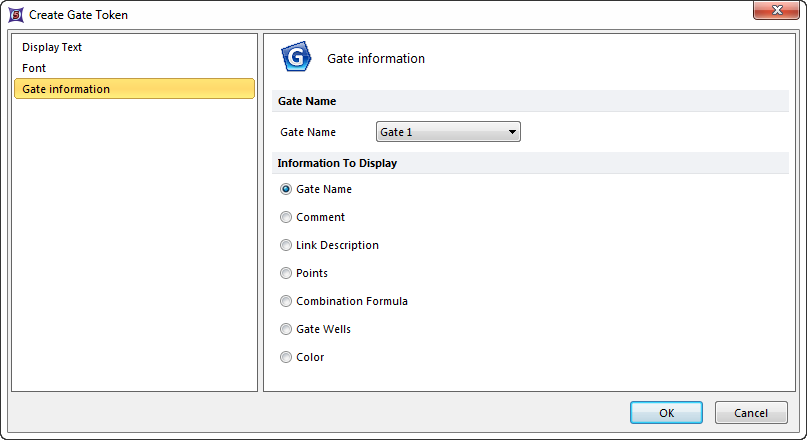

Figure 19.18  Gate Token Options

Figure 19.18  Gate Token Options





•Select the Gate Name (on which to base the token data) from the drop-down list.



•Choose one of the following options for which Information to Display:



Gate Token

Definition

Gate Name

This is the name that you specified when the gate was created. This name that is used to reference the gate throughout FCS Express.

Comment

This is text that you can specify when you are editing the gate from the Gate View.

Link Description

If the gate is linked to a quadrant or a marker, this is the information that describes that link.

Points

If the gate is one of the basic shapes (elliptical, rectangular, polygonal, or freeform) and not a combination gate, then this is the set of points that define it on the plot.

Combination Formula

If the gate is a combination gate, this is the formula that you used to create it.

Gate Wells

If the Gate is a Well Gate, this information tells you which well, or wells, makes up the Gate.

Color

This token will describe the color used for the Gate.
