In the course of this tutorial you will learn :

•How to save ImageXpress Velos data with images from an experiment.

•How to import the data into FCS Express.



ImageXpress Velos Setup – Saving Images and Object Data

1.Select Instrument Setup from the menu bar.

2.Click on the Analysis Tab.

3.Click the Produce individual iso files check box. This saves the analyzed object data for each well.

4.Click the Produce MDCStore Compatible files check box. This saves the raw tiff image from each well.

5.Ensure the Auto. Correct Saturated Data check box is checked.

6.Click OK.

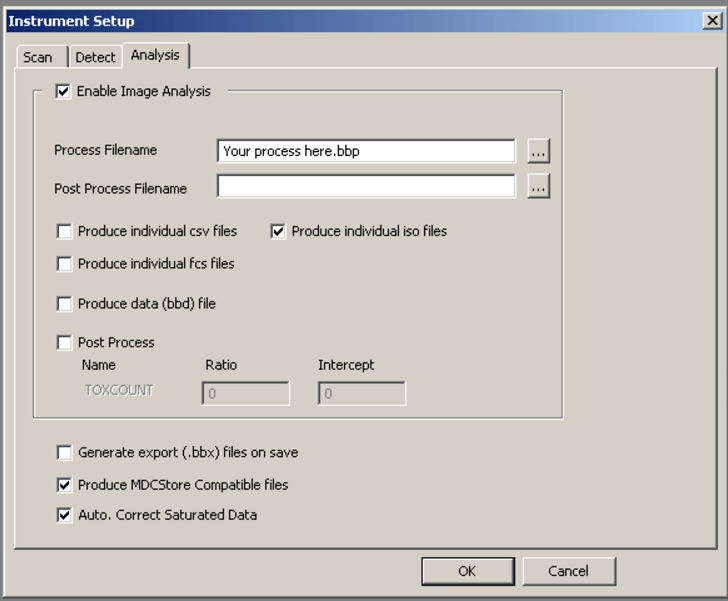

The Instrument Setup window should look like Figure T25.1 when you are done.





7.Analyze your experiment in ImageXpress Velos.

8.Save your experiment in ImageXpress Velos.



In the next section, we will import ImageXpress VelosTM Data with images into FCS Express.
