FCS Express also allows you to view your histogram overlays in 3D.



In the course of this example we will:

•Acquire an overview of the 3D options.

•Turn 3D on.

•Change the 3D percent.



We will use the histogram shown in Figure T3.26.



1.Right-click on the histogram and select Format. The Formatting window appears (Figure T3.31).

2.Click on the Plot 3D Options category under the Histogram sub-menu ().

3.Check View in 3 Dimensions ().

4.Change the 3D % to 100% ().

5.Adjust the Zoom slider to 70% ().

6.Adjust the Vertical offset slider to approximately 10% ().



Press OK to accept the changes.

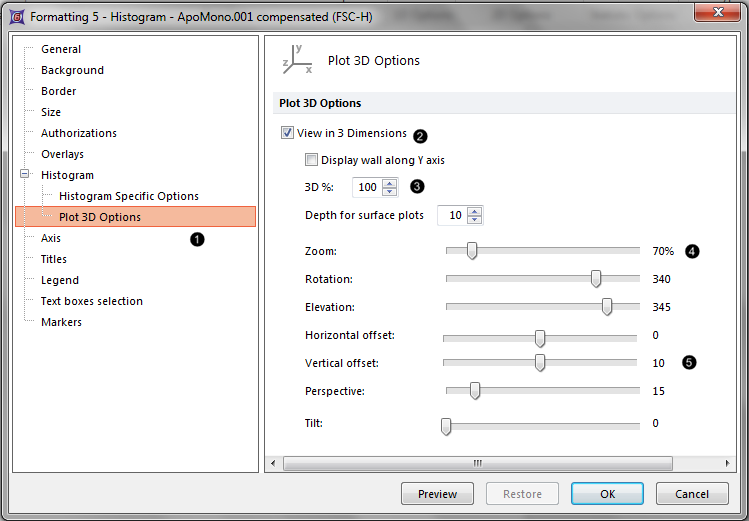

Figure T3.31 Histogram 3D Options

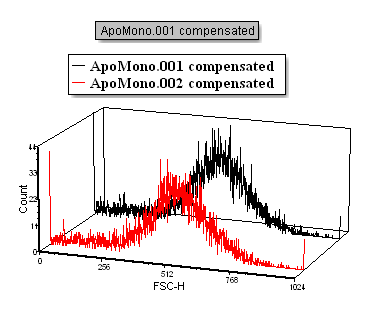

The plot should now look similar to Figure T3.32.
