Once k-means clustering has been performed, results can be accessed as 1D plots, 2D plots, Heatmaps and Data Grid depending on the selected output style (see the previous section). The Cluster Assignments chosen to be calculated may be accessed on plots on which the transformation has been applied as new parameters.



Although clustering results are automatically displayed when inserting a Data grid, to access clustering results as parameters in 1D plots, 2D plots and/or Heatmaps, the k-means transformation must be applied to the plots.



k-means clustering may be applied to 1D plots, 2D plots and heatmaps by either of the following methods:

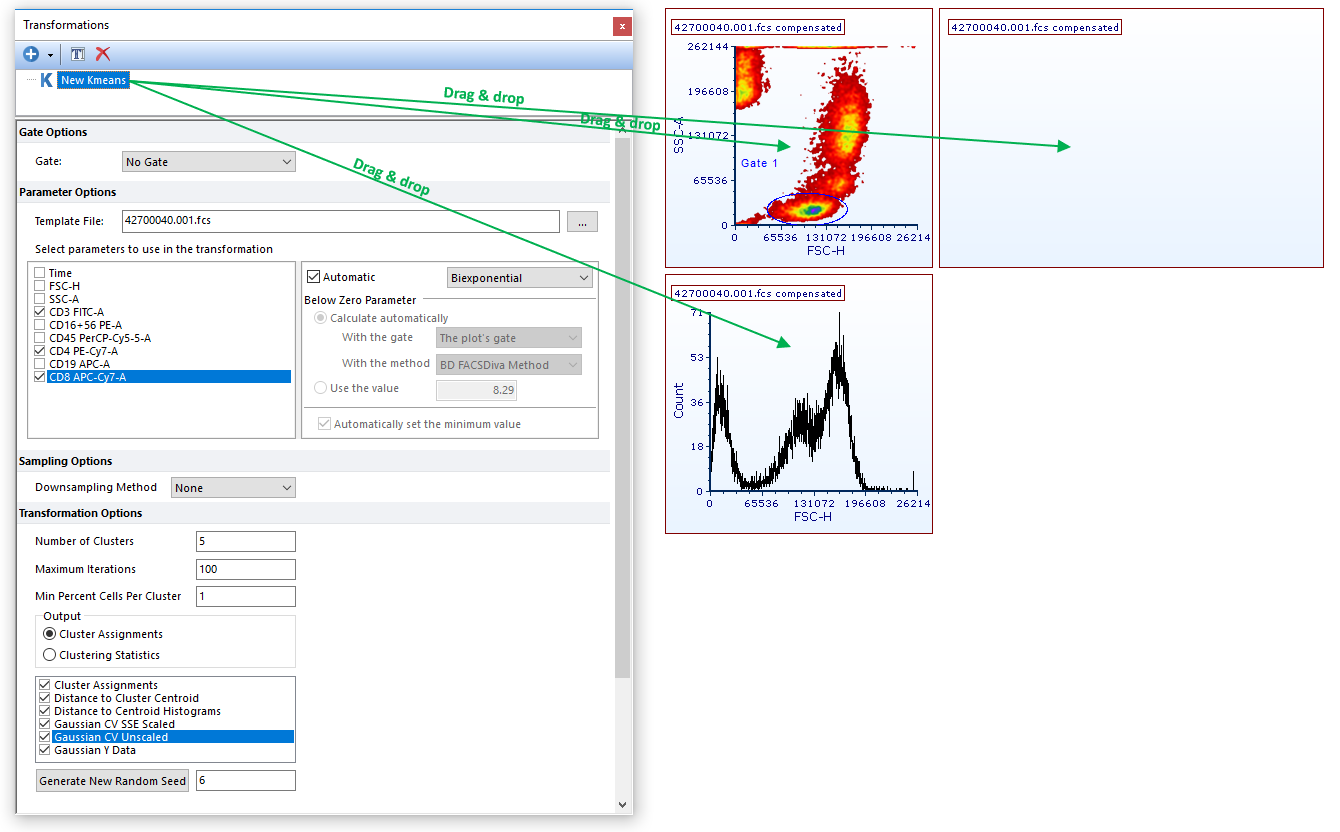

Drag and Drop (Figure 29.31)

1. Left click and hold on k-means clustering from the Transformation window.

2. Drag the Kmeans to the intended plot.

3. Release the mouse button.



The Kmeans will be applied to the plot and the title of the plot will now include the text "Kmeans clustered" to indicate the transformation has been applied.

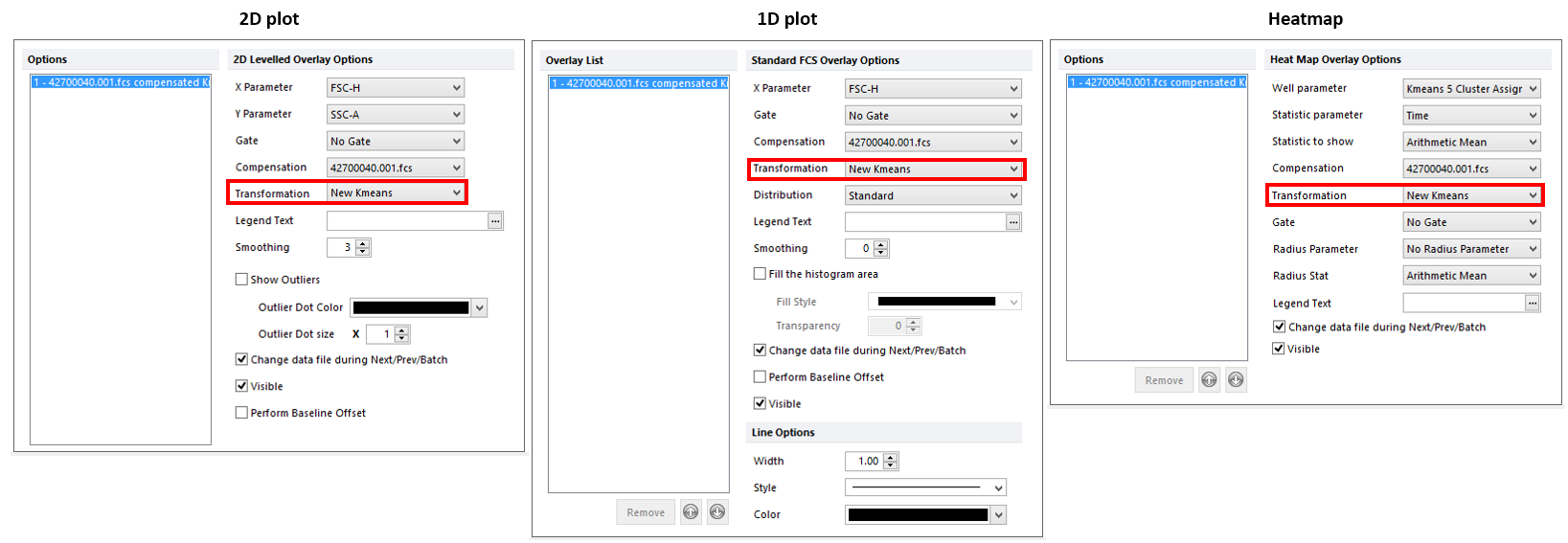

Using the Formatting Dialog (Figure 29.32)

1. Access the Formatting→Overlays dialog (for 1D plots, 2D plots and Heat map) or the Formatting→General dialog (for Data Grids).

2. Choose the Kmeans to apply from the Transformation drop down.

3. Click OK.

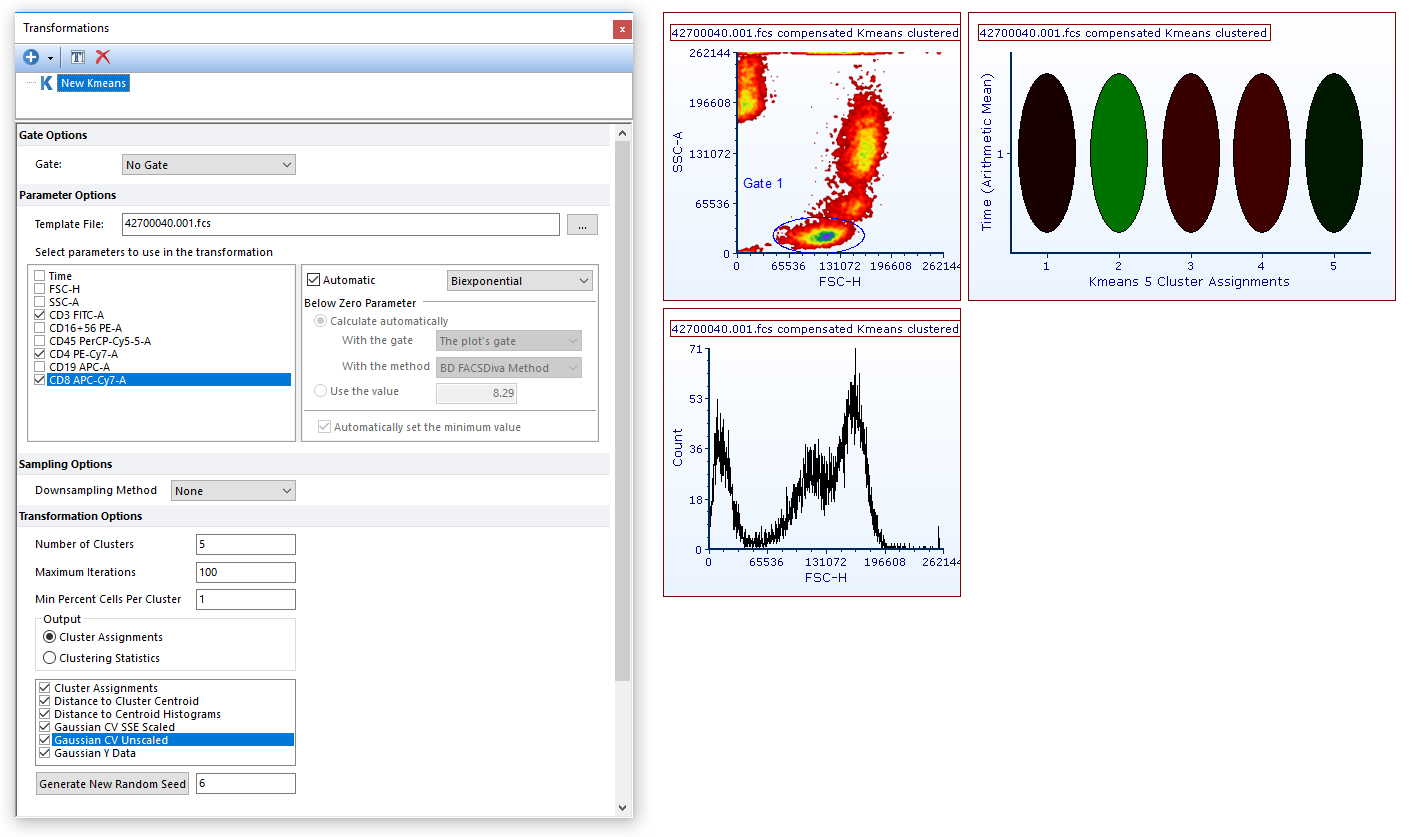

The result of both the previous methods is represented in Figure 29.33 below. When a k-means clustering has been applied to a plot or to an heatmap, the suffix "Kmeans clustered" will appear in the object title.







In the next section we will see how to work with clustering parameters.
