Reports can be arranged into groups based on column headers.



To create a grouped report:



1.Click on a column header to select it.

2.Click and hold on the column header.

3.Drag the column header to the grey area just above the header (green arrows and the text "Drag a column header here to group by that column" will indicate where the column header will be placed) (Figure 18.53).

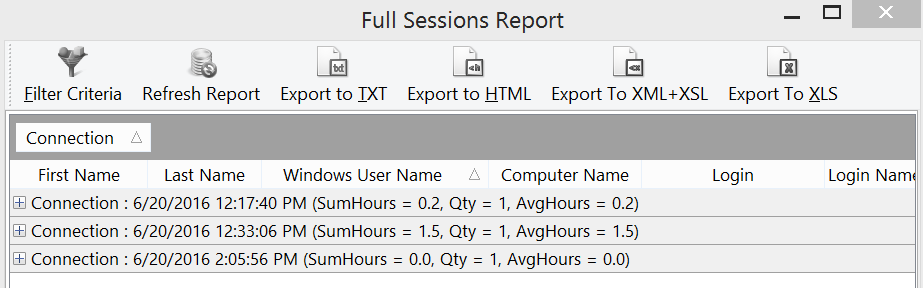

▪In the example below the column header for Connection was dragged to the grouping area.







4.Drop the column header by releasing the mouse button (Figure 18.54).







Subgrouping of the report is also possible.



To create subgroups:



1.Click on a column header to select it.

2.Click and hold on the column header.

3.Drag the column header to the grey area just above the header (green arrows and the text "Drag a column header here to group by that column" will indicate where the column header will be placed) (Figure 18.55).

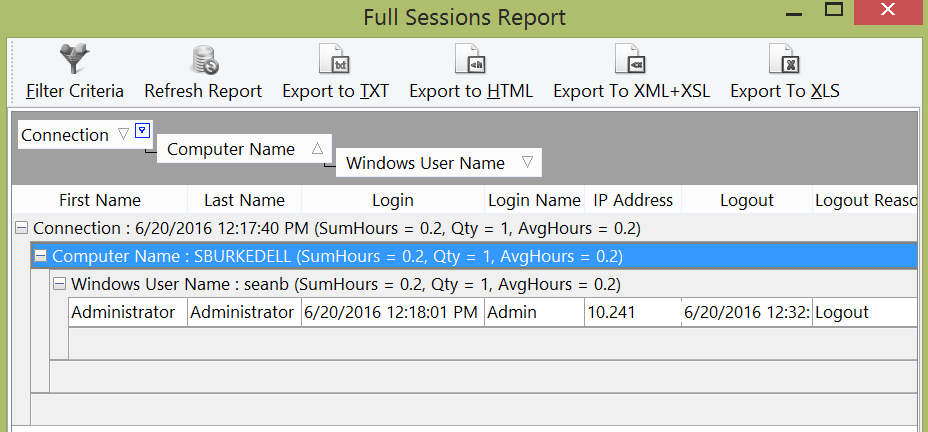

▪In the example below the column header for Computer Name and IP Address were subsequently was dragged to the grouping area.



4.Drop the column header by releasing the mouse button.



The hierarchy of subgroups can also be changed by dragging and dropping a sub-grouped item before or after another grouped or sub-grouped item.

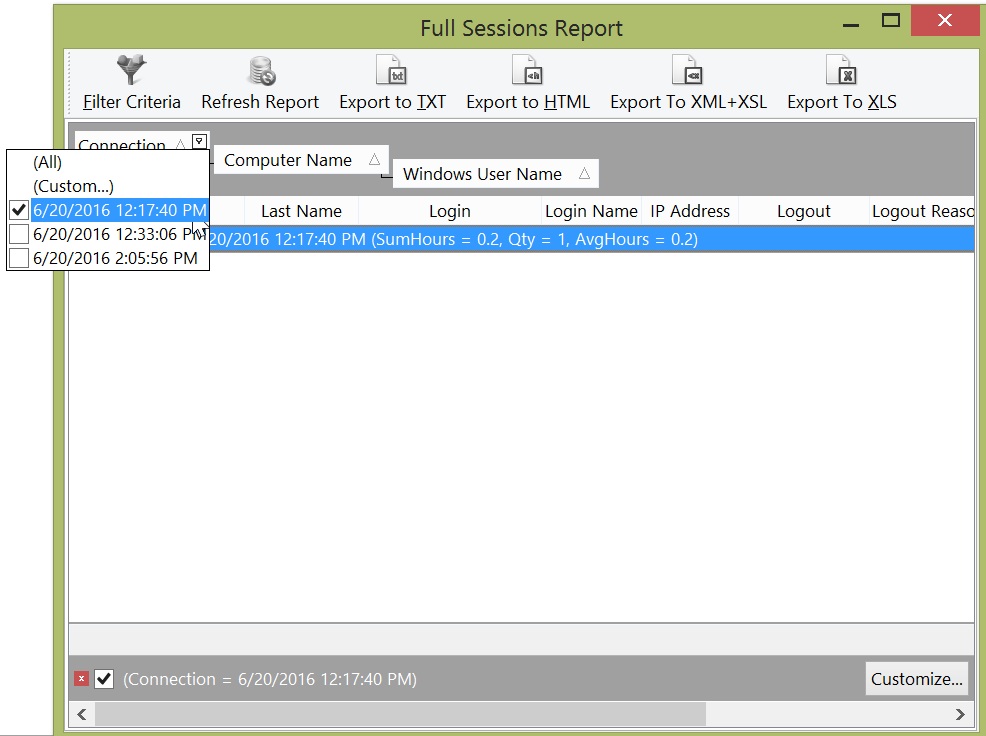

Grouped items can also be further filtered by clicking on the group or sub-grouped heading and checking the box for the sub-group classification (Figure 18.56).

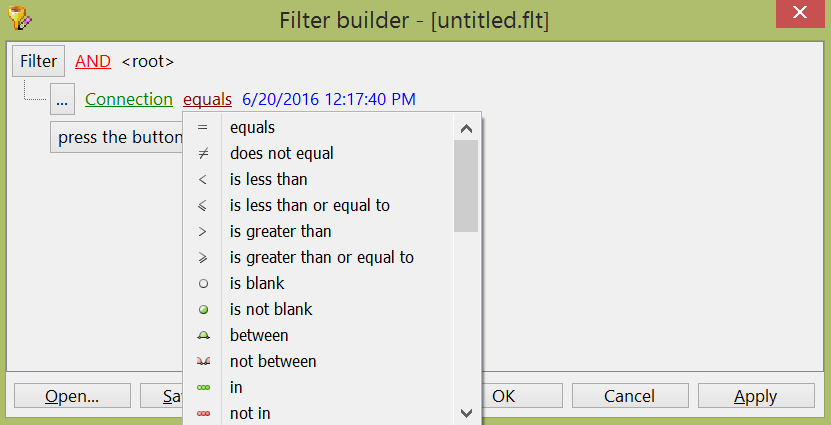

If the (Custom...) category is chosen (Figure 18.57), you will be prompted with the Custom Filter dialog.

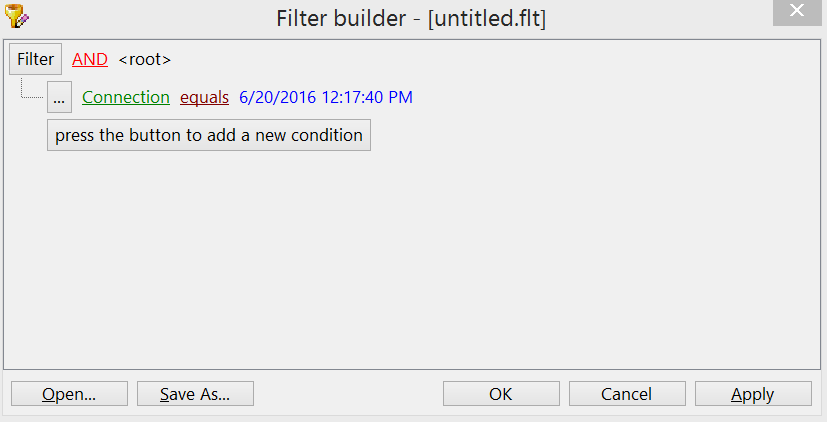

The Custom Filter dialog (Figure 18.58) allows you to define a custom classification for your reports grouping.







Date range filtering may also be done on any column, group, or custom filter using the Filter Criteria button.

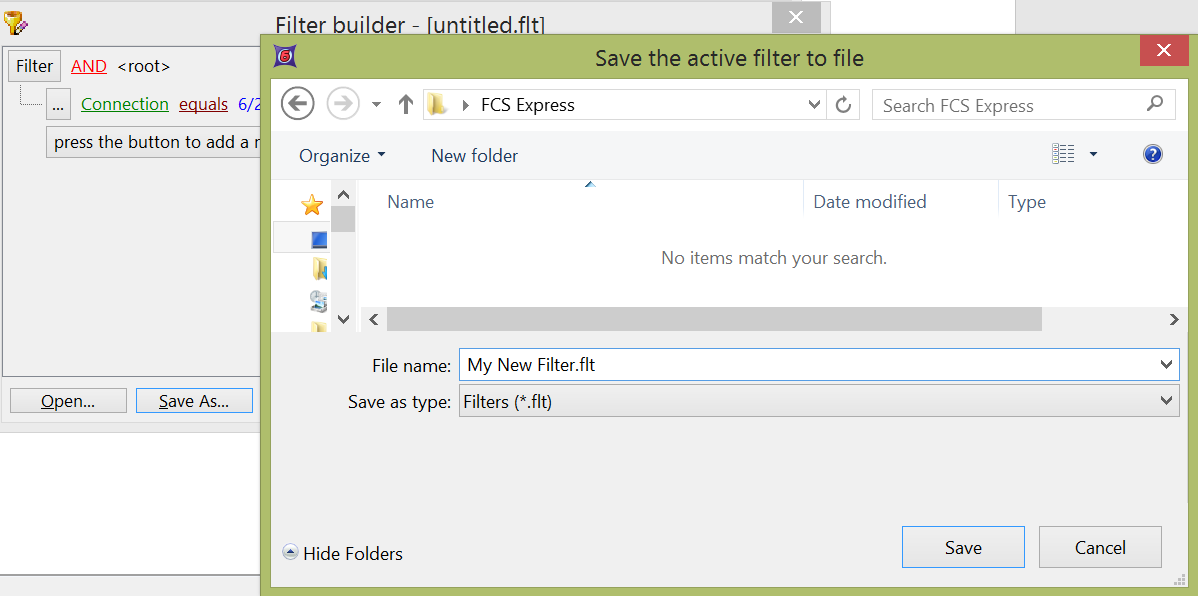

Filters may also be saved by clicking on the Save As... button (Figure 18.59 below). The Save the active filter to file dialog will appear where you may save your Filters (*.flt) file to be used again at a later date by clicking Save.
