Chorus Index Sorting Data Files only allow for analysis on indexed sort events.



To analyze Index Sort Data:



1. Insert a plate heat map for the index sort data file.

2. Select the parameter of interest on the y-axis (Figure 5.114).

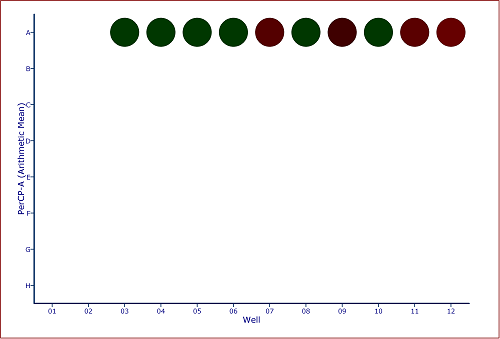

Figure 5.114 Default Plate Heat Map with PerCP Arithmetic Mean Y Parameter

Figure 5.114 Default Plate Heat Map with PerCP Arithmetic Mean Y Parameter



3. Insert a Color Dot Plot.

4. Change the axes on the color dot plot to the parameters of interest.

5. Create a Well Gate on all wells.

  Note:

o In addition to creating a gate on all wells a gate may be created on one, or any number of wells, to visualize the individually sorted cells.

o Since Chorus Index Sorting Data Files only contain data for the unsorted events, we can use the Emphasize on Plots feature of gates to emphasize the events that fall within the gate (Figure 5.115).

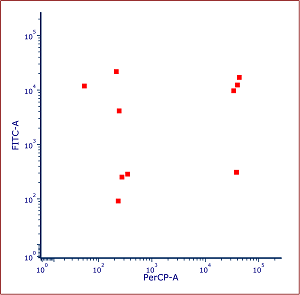

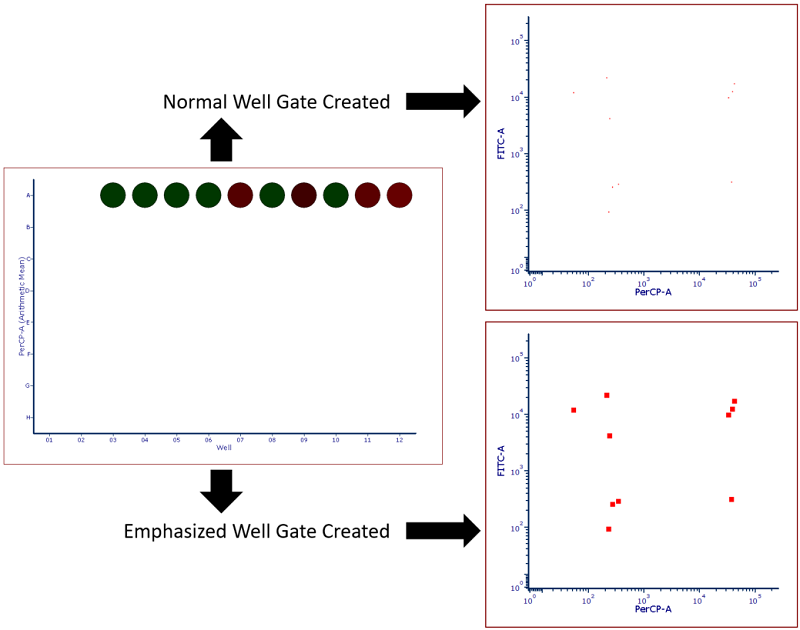

Figure 5.115 Plate heat map with Well Gate created on all wells. Standard gate is shown above while a gate with the Emphasize on Plots check box checked is shown below.  Note that events highlighted in red fall within the well gate and in this case represent all events that were sorted into the plate making them easier to visualize.

Figure 5.115 Plate heat map with Well Gate created on all wells. Standard gate is shown above while a gate with the Emphasize on Plots check box checked is shown below.  Note that events highlighted in red fall within the well gate and in this case represent all events that were sorted into the plate making them easier to visualize.



6. Select the Insert tab→General→Gate View command to insert a Gate View.

7. Drag and Drop the Well Gate from the Gate View to the Color Dot Plot to apply the Well Gate (Figure 5.116).

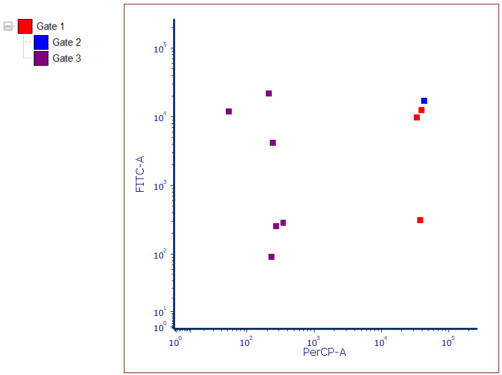

Figure 5.116 Color Dot Plot gated on Well Gate with events emphasized

Figure 5.116 Color Dot Plot gated on Well Gate with events emphasized



8.Optional: Create additional Well Gates to isolate any number of individual wells (blue events below) or a group of wells (purple events below) (Figure 5.117).



Figure 5.117 Color Dot Plot gated on Well Gate with Children Gates Applied and Emphasized

Figure 5.117 Color Dot Plot gated on Well Gate with Children Gates Applied and Emphasized



It is possible to insert a plate heat map statistics grid in a text box to display statistics for each well in the plate heat map as done in Figure 5.118.

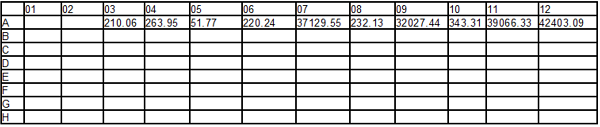

Figure 5.118 Plate Heat Map Statistics Grid displaying statistics for the Y parameter of the Plate Heat Map

Figure 5.118 Plate Heat Map Statistics Grid displaying statistics for the Y parameter of the Plate Heat Map



Another useful feature for index sorting data is the Plate Heat Map Overlay function. Plate Heat Map Overlays allow a user to view multiple statistics and parameters on a single plate heat map by adding each statistic as a new overlay. For instance, in Figure 5.119 left, the upper slice of the well represents FITC arithmetic mean while the lower slice represents PerCP arithmetic mean so single and double positive events can be more easily visualized.



Additionally, users may add a Radius Statistic, which changes the size of the well to reflect the selected parameter. For instance, in Figure 32 below (right), the heat/color for each well is dependent on the PerCP arithmetic mean while the size of the well radius is dependent on the FITC arithmetic mean.



Please see the Plate Heat Map Overlay section of the manual for full instructions on how to create a plate heat map overlays of different parameters and types as well as setting the radius parameter statistic.

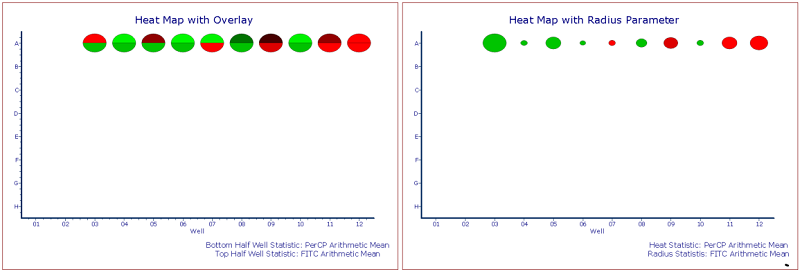

Figure 5.119 Custom Plate Heat Maps with Overlay (left) and Radius Parameter (right). Standard Deviations of Color Levels was changed to 1.

Figure 5.119 Custom Plate Heat Maps with Overlay (left) and Radius Parameter (right). Standard Deviations of Color Levels was changed to 1.
