FCS Express supports seven types of gates.



•Elliptical gates: Gates that are oval, oblong, or circular.



•Rectangular gates: Gates that are square or rectangular.



•Polygonal gates: Gates that are drawn with three or more vertices connected by straight lines.



•Freeform gates: Gates that are drawn with various straight and/or curved sections in an irregular shape.



•1D gates: Gates that exist only in one dimension, i.e., a one parameter histogram gate or an x-axis plot gate.



•Well gates: Gates that are set on a heat map display showing the wells of a microtiter plate.



•Combination gates: Gates that are Boolean combinations of one or more of the other six types of gates.



•Quadrant Gates: Gates that are generally used to divide the plot content in 4 complimentary, and mutually exclusive, regions.

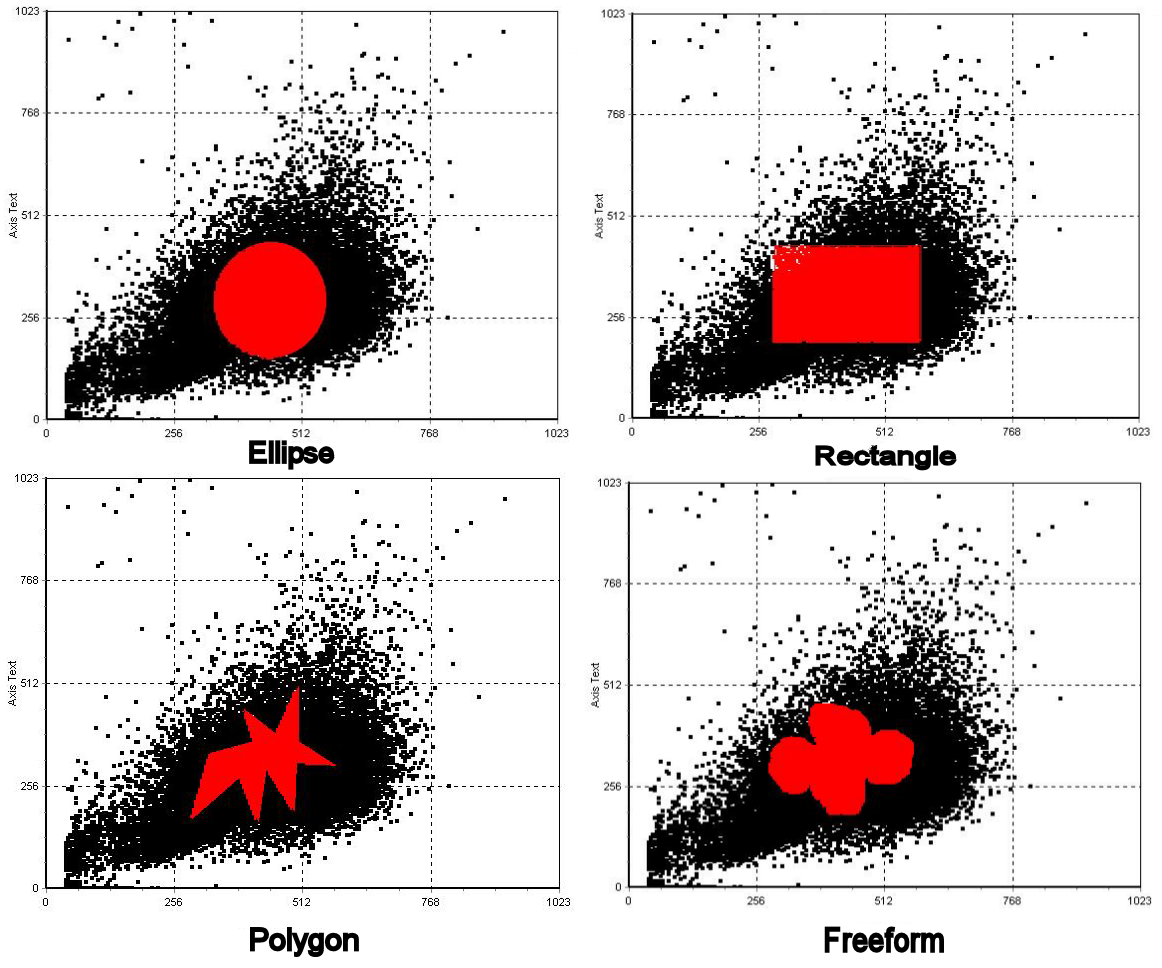

Examples of different gate types are shown in Figure 7.4.
