All 2D plots have at least one overlay representing a file and two parameters to display. With certain 2D plots (e.g., Dot, Color Dot and Scatter), you can add additional overlays, by any of the following methods:



•Right-click on the plot and select Add overlay from the pop-up menu. This launches either the Select Data File or the Open Data File dialog depending on the Open Data Dialog user Options; or

•Right-click on the plot and select Add Overlay using Advanced Open Data Dialog (launches the Advanced Open Data File dialog), or

•Drag-and-drop file(s) from the Data List onto the plot you wish to overlay, or

•Drag-and-drop a plot from the layout onto the plot you wish to overlay.



You can always format an overlay by:

•right-clicking on a plot (or double-clicking on it if it is already selected), selecting Format from the pop-up menu, and choosing Overlay from the drop down.

•select the plot and choose the Overlay category from the Format tab of the Ribbon.



The Formatting Overlays dialog controls the parameters and appearance of 2D overlays.



In the Formatting Overlay dialog (Figure 5.33), a list of all the overlays on the plot will appear in the Options box at the top. When multiple overlays are present, you can select one or more overlays using standard Microsoft Windows techniques, including Shift-Click and Cmd-Click. You may also multiple select all overlays via the Cmd+A command, or right clicking and choosing to Select All or Invert Selection.



The properties on the bottom of the window pertain to the currently selected overlay(s). If multiple overlays are selected, the information will appear blank for those properties that are not identical in all selected overlays. If the properties are not blank, then they are identical for all selected overlays. Changing an option will change that property for all selected overlays. For instance, if you select three overlays and change the Gate, the Gate for all three overlays will be modified.



To remove an overlay from a plot, select the overlay (or multiple overlays) and press the Remove button.



To change the order of selected overlay(s) in the legend, use the blue up and down arrows (ReorderOverlays_grayArrows).



For a brief tutorial on how to use overlays, visit us at https://youtu.be/nVqwvDo1RmA.



For Dot plots and Color Dot plots the following overlay options are available:

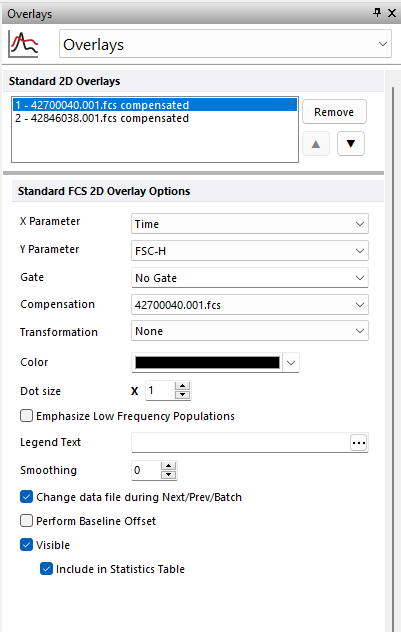

Figure 5.33  Formatting Overlays Dialog for 2D Dot Plots

Figure 5.33  Formatting Overlays Dialog for 2D Dot Plots



Option

Explanation

X Parameter

Change the parameter displayed on the X axis.

Y Parameter

Change the parameter displayed on the Y axis.

Gate

If gates are defined, select the gate that will be used to limit the data that is displayed on the 2D plot.

Compensation

If compensation definitions are set, select the definition to use when compensating the data in the overlay.

Transformation

If transformations are defined, select the transformation to use when displaying the data in the overlay.

Color

The color that the overlay will be drawn in (used for dot plots and color dot plots). The default overlay colors can be set on the 2D plot preferences page of the FCS express User Options Dialog.

Dot Size

FCS Express automatically calculates the dot size based upon the height and width of your plot. By changing this setting, you can force the dot size to be larger or smaller than what FCS Express calculates by the factor chosen in the spin box. Note: If you are using several overlays on color dot plots, and you want the overlays to have different dot sizes, then the plot must be set with Dither turned off.

Emphasize Low Frequency Populations

If the % gated for a given gate is < 2%, the dot size for those gated events will increase.  Only available for Dot plots displaying gate colors and Color Dot plots.

Legend Text

The text that will appear in the legend beside the symbol for the overlay. Free text can be inserted. If this field is blank the file name of the overlay will appear.

A dropdown menu with additional pre-customized legend content is accessible by pressing the ellipsis button next to the legend text. Possible choices are:

oKeyword. This can be used to insert keywords from the header of the data file.

oGate. This can be used to display the current gate applied to the overlay.

oTube Number. This can be used to display the Tube Number of the overlay when a Panel is active.

oTube Name. This can be used to display the Tube Name of the overlay when a Panel is active.

The above mentioned Legend options apply only to Dot Plots, Color Dot Plots, Histograms and Spectrum Plots.

Smoothing

Set the degree of smoothing for the presentation of your data.

Change data file during Next/Prev/Batch

If this option is checked, the data file for this overlay will change when doing batch processing, or selecting Previous File or Next File. This option is usually only disabled for control histograms, where you have multiple overlays, and want the control to stay the same all of the time.

Perform Baseline Offset

If the value of the cell is zero, a random offset will be added so that the dot appears off the axis. This will not affect the statistics.  This option is typically used when analyzing LMD files from Beckman Coulter.

Visible

Controls whether or not to display this overlay on the 2D plot. If unchecked, Gate and Quadrant Statistics will be hidden for the selected overlay.

Include in Statistics Table

Allows the user to determine if the statistics for a given overlay are displayed in the Statistics table of the selected plot.
