All of the DNA statistics can be used as tokens. DNA tokens can be inserted into text boxes, used in Custom Token or Alert formulas, and exported to reports during batch processing.



To insert a DNA token into a text box:



1. Insert a text box using the Insert tabGeneralText Box command.

2. Right-click on the text box and select Insert Token.

3. Double-click Statistic to bring up the Create Statistic dialog.

4. Choose a DNA Histogram as a Data Source.

5. Open the Statistic category.

6. Choose a DNA statistic from the Select a Statistic drop-down list. If you choose DNA Cycle Statistics, the dialog will look like Figure 5.15. If you choose a different DNA statistic (DNA Model Summary Statistics or DNA Experiment Statistics), the options and the specific items in the list box will change.

7. Click OK.

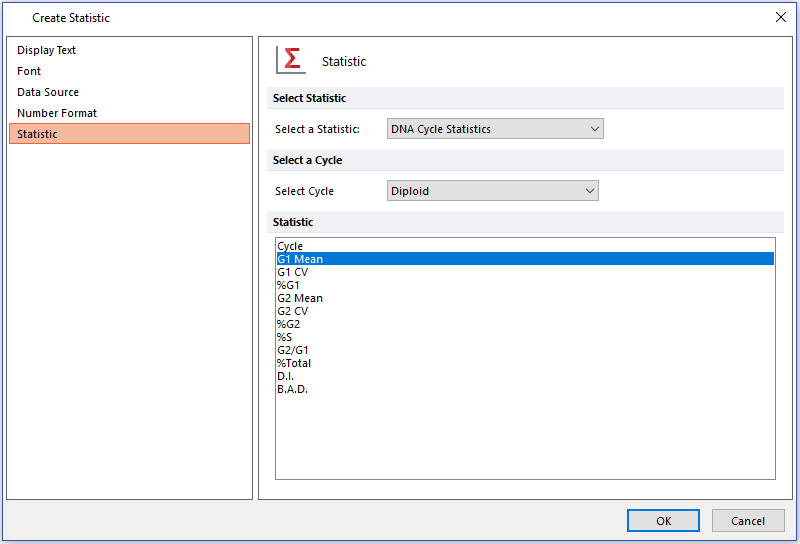

Figure 5.15  Create Statistics Dialog - DNA Cycle Statistics

Figure 5.15  Create Statistics Dialog - DNA Cycle Statistics
