To create a Save GatingML action, click on Save GatingML (in the Add Action section of the Batch Actions window). Note that gates can also be exported directly from the layout and saved in the GatingML format.

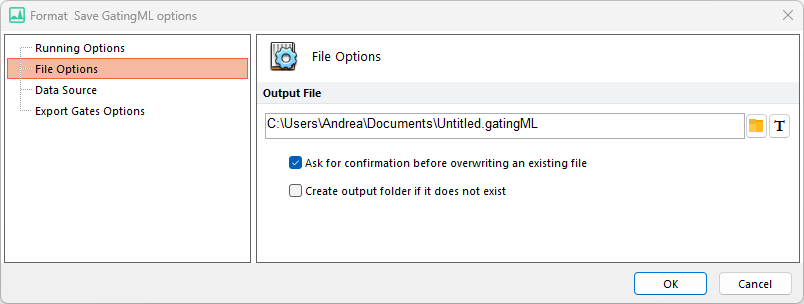

The File Options page of the Save GatingML Options dialog (Figure 8.14) consists of one section:



oOutput File Options



Enter the filename for the exported file. See Save Layout - File Options for a description of batch generated filenames.



Figure 8.14 Save GatingML File Options

Figure 8.14 Save GatingML File Options

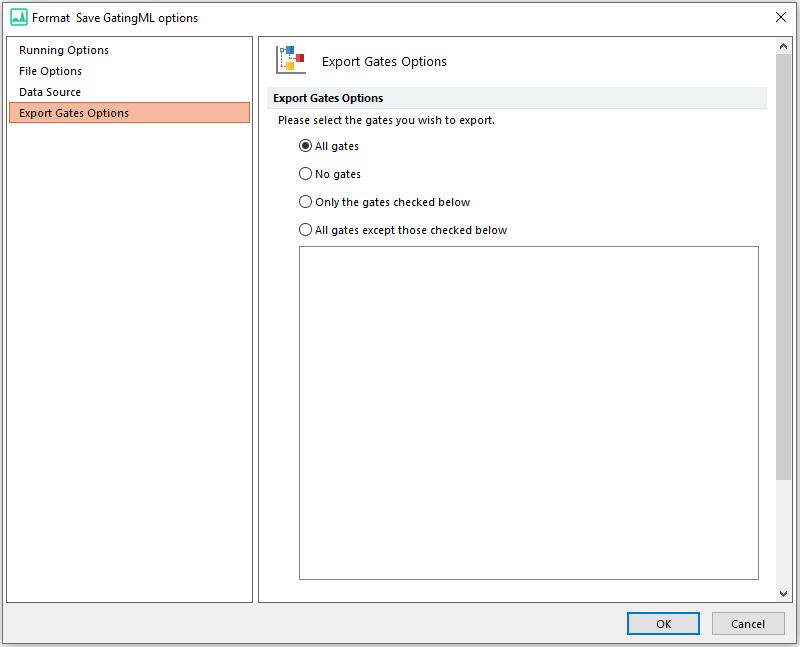

The Export Gates Options page of the Save GatingML Options dialog (Figure 8.15) is used to select the gates on the layout to be exported. Select the radio button for All gates to export all gates, Only the gates checked below to export specific gates, or All gates except those checked below to exclude specific gates from the export.



Figure 8.15 Save GatingML Export Gates Options

Figure 8.15 Save GatingML Export Gates Options



The Data Source page of the Save GatingML Options dialog (Figure 8.16) consists of three sections:



o Data Source



Select the data source (Plot, Spreadsheet or Data File From Disk) to export gate coordinates



oSelect a Plot



Select a plot on the layout to export gate coordinates from



oSelect an Overlay



Select the overlay on the plot to export gate coordinates from



Figure 8.16. Save GatingML Data Source Options

Figure 8.16. Save GatingML Data Source Options
