SOP Tokens
Contents
SOP (Standard Operating Procedure) tokens are described in detail in the Displaying SOP Information chapter. See token list and Figure 12.37.
SOP Token |
Definition |
Number of SOP steps |
The total number of steps in an SOP |
Current SOP step name |
The name of the currently active step when running SOP as defined by the user |
Current SOP step internal ID |
The internal ID of the currently active step when running SOP |
Current SOP step order number |
The step order number when running SOP |
Current SOP step description |
The step description when running SOP |
Current SOP step completion date |
The last date the current SOP step was completed on. |
SOP step name |
The name of the selected step from the Create SOP Token dialog |
SOP step internal ID |
The internal ID of the selected step from the Create SOP Token dialog |
SOP step order number |
The step order number of the selected step from the Create SOP Token dialog |
SOP step description |
The step description of the selected step from the Create SOP Token dialog |
SOP step completion date |
The last date the selected step from the Create SOP Token dialog was completed on |

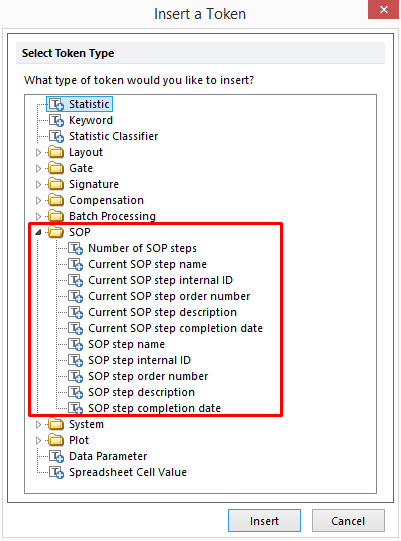

Figure 12.37 - SOP Token List
The following properties can be edited for SOP Tokens, by right-clicking on the token:
•Display Text - defines if the token should display the Token Value (default), Token Description, or a user-defined Text.
•Font - changes the font depending on the value of the token based on a list of classifications
•SOP Information - choose the SOP Token to display (Figure 12.38). See the Displaying SOP Information chapter for more information.

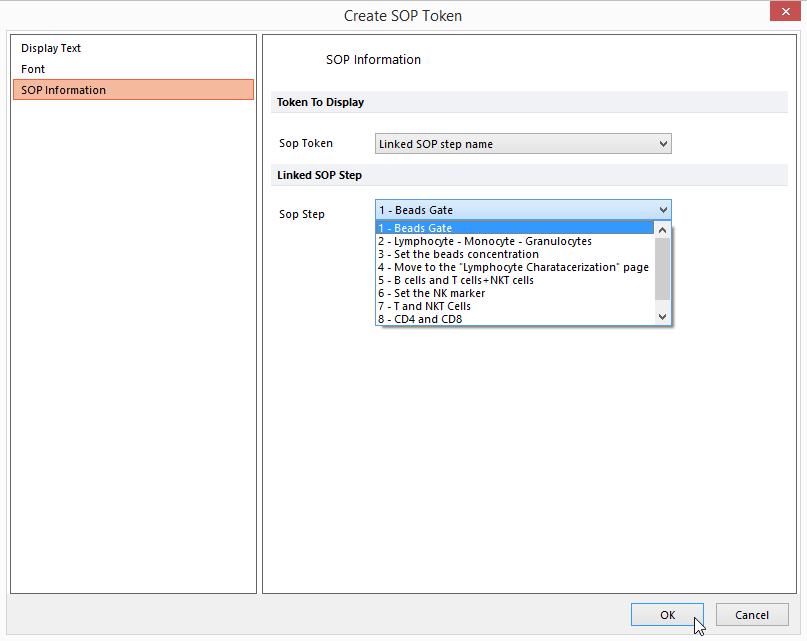

Figure 12.38 - SOP Information
