Overlays
Contents
All 2D plots have at least one overlay representing a file and two parameters to display. With certain 2D plots (e.g., Dot, Color Dot, and Scatter), you can add additional overlays, by any of the following methods:
| • | Right-click on the plot and select Add overlay from the pop-up menu, or |
| • | Drag-and-drop file(s) from the Data List onto the plot you wish to overlay, or |
| • | Drag-and-drop a plot from the layout onto the plot you wish to overlay. |
The Overlays option controls the parameters and appearance of 2D overlays.
You can edit overlays in one of two ways:
| • | Select the 2D plot and use the Format→Plot Options→Overlays command (Figure 8.71). |
| • | Right-click on the 2D plot, select Format from the pop-up menu, and choose the Overlays category. |

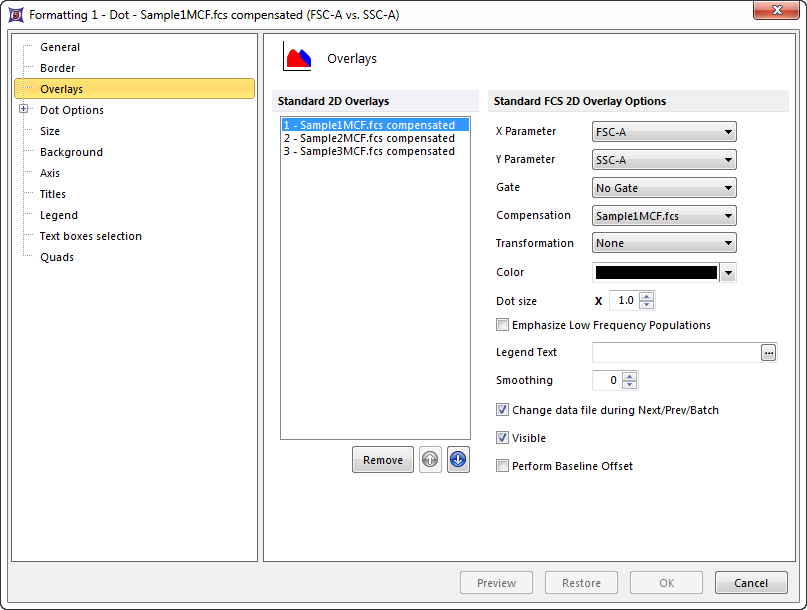

Figure 8.72 Formatting Overlays Dialog for 2D Dot Plots
In the dialog, a list of all the overlays on the plot will appear in the list box to the left. If the plot type permits multiple overlays, you can select one or more overlays using standard Microsoft Windows techniques, including Shift-Click and Ctrl-Click. The properties on the right pertain to the currently selected overlay(s). If multiple overlays are selected, the information will appear blank for those properties that are not identical in all selected overlays. If the properties are not blank, then they are identical for all selected overlays. Changing an option will change that property for all selected overlays. For instance, if you select three overlays and change the Gate, the Gate for all three overlays will be modified.
To remove an overlay from a plot, select the overlay (or multiple overlays) and press the Remove button.
To change the order of selected overlay(s) in the legend, use the blue up and down arrows (
).
For a brief tutorial on how to use overlays, visit us at https://youtu.be/nVqwvDo1RmA.
Overlay properties for dot plots are explained in the table below.
Option |
Explanation |
|---|---|
X Parameter |
Change the parameter displayed on the X axis. |
Y Parameter |
Change the parameter displayed on the Y axis. |
Gate |
If gates are defined, select the gate that will be used to limit the data that is displayed on the 2D plot. |
Compensation |
If compensation definitions are set, select the definition to use when compensating the data in the overlay. |
Color |
The color that the overlay will be drawn in (used for dot plots and color dot plots). The default overlay colors can be set on the 2D plot preferences page of the FCS xpress User Options Dialog. |
Dot Size |
FCS Express automatically calculates the dot size based upon the height and width of your plot. By changing this setting, you can force the dot size to be larger or smaller than what FCS Express calculates by the factor chosen in the spin box. Note: If you are using several overlays on color dot plots, and you want the overlays to have different dot sizes, then the plot must be set with Dither turned off. |
If the % gated for a given gate is < 2%, the dot size for those gated events will increase. Only available for Dot plots displaying gate colors and Color Dot plots. |
|
Legend Text |
The text that will appear in the legend beside the symbol for the overlay. If this field is blank the file name of the overlay will appear. Insert keywords from the header of the FCS file by pressing the ellipsis next to the legend text. You can also display the current gate applied to the overlay by inserting "<$FCSE_GATEFORMULA>" into the legend text. |
Smoothing |
Set the degree of smoothing for the presentation of your data. |
Change data file during Next/Prev/Batch |
If this option is checked, the data file for this overlay will change when doing batch processing, or selecting Previous File or Next File. This option is usually only disabled for control histograms, where you have multiple overlays, and want the control to stay the same all of the time. |
Visible |
Controls whether or not to display this overlay on the 2D plot. |
Perform Baseline Offset |
If the value of the cell is zero, a random offset will be added so that the dot appears off the axis. This will not affect the statistics. This option is typically used when analyzing LMD files from Beckman Coulter. |
For Contour and Density plots, you can choose whether or not to display Outliers and control the Outlier Dot Color and/or Outlier Dot size (Figure 8.72).

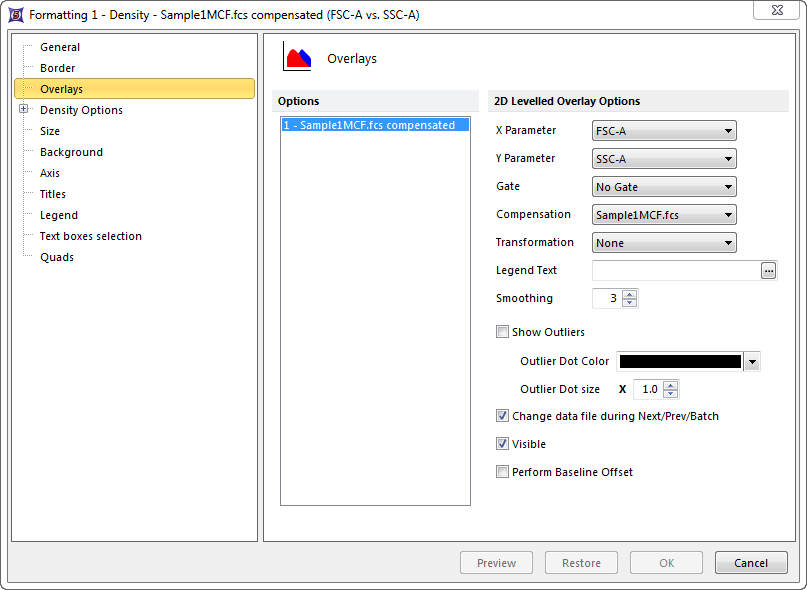

Figure 8.73 Formatting Contour or Density Plots
