Custom Token Formula Reference

The following tables are a reference of all operators and functions available for creating custom tokens in the Custom Token Editor and with Parameter Math.



Arithmetic Operators



Operator

Description

x+y

Add x and y

x-y

Subtract y from x

x*y

Multiply x and y

x/y

Divide x by y

x^y

x to the y power



Conditional/Comparison Operators. Use these with IF..THEN..ELSE statements.



Operator

Description

x>y

x is greater than y

x<y

x is less than y

x=y

x is equal to y

x>=y

x is greater than or equal to y

x<=y

x is less than or equal to y

x<>y

x is not equal to y



Logical Operators. These are used in IF..THEN..ELSE statements or to combine two equations.



Operator

Description

x OR y

x OR y

x AND y

x AND y

NOT (x AND y)

Inverse of the value of (x AND y)

Example:  if (x>20 and y>20) then......else

If combining multiple logical operators, parenthesis must surround each operator.

Example:  if ((x>20 and y>20) and (a<1 or b>10)) then......else



Mathematical Functions



Function

Description

Abs(x)

Absolute value of x

ArcCos(x)

Arc Cosine of x

ArcCosh(x)

Hyperbolic Arc Cosine of x

ArcSin(x)

Arcsine of x

ArcSinh(x)

Hyperbolic Arcsine of x

ArcTan(x)

Arctangent of x

ArcTanh(x)

Hyperbolic Arctangent of x

ConvertLinToLog(I,J,K,L)

Converts a linearly scaled value into a logarithmically scaled value, using the following parameters:

I = Lin value, J = # of decades, K = output range (with values of 0, 256, 512, or 1024), L = offset



This will convert a value from 1-10,000 to 0-1024.

ConvertLogToLin(I,J,K,L)

Converts a Logarithmically scaled value into a Linearly scaled value, using the following parameters:

I = Log value, J = # of decades, K = input range, L = offset



This will convert a value from 0-1024 to 1-10,000.

Cos(x)

Cosine of x

Cosh(x)

Hyperbolic Cosine of x

CoTan(x)

Cotangent of x

Ln(x)

Natural logarithm of x

Log(x,y)

Logarithm of y in base x

Max(x,y)

Returns the higher value of x and y.

Maximum([x,y,z...])

Returns the maximum value in the array ([x,y,z,…]). The array can hold an unlimited number of elements.

Mean([x,y,z...])

Returns the mean of the values in the array [x,y,z,…]. The array can hold an unlimited number of elements.

Min(x,y)

Returns the lower value of x and y.

Minimum([x,y,z...])

Returns the minimum value in the array ([x,y,z,…]). The array can hold an unlimited number of elements.

Range([x,y,z...])

Returns the result of (Maximum([x,y,z,…]) – Minimum([x,y,z,…])).

Sin(x)

Sine of x

Sinh(x)

Hyperbolic Sine of x

Sqr(x)

x squared

Sqrt(x)

Square root of x

StdDev([x,y,z...])

Returns the standard deviation of the values in the array [x,y,z,…]. The array can hold an unlimited number of elements.

Tan(x)

Tangent of x



Type Conversion Functions. These are used in more advanced formulas, to convert a number to text and vice versa. They are used when the value returned by a particular token is not the type that you need, and you want to convert it to a type that you can include in your formula. You could also change the result type as described in Custom Token Formatting.



Function

Description

NumericToString(x)

Converts the number x to text (also known as a string).

StringToNumeric(x)

Converts the string x to a number.





Logic (True/False) Functions. These functions return the truth values of applying an operation to the incoming parameters. Some of the functions return a numerical representation of True (-1) or of False (0).



Function

Description

Between(x,y,z)

Returns True if x is between y and z (including being equal to y or z), False otherwise.

FalseValue

Returns 0.

IsFalse(x)

Returns True if x has a value of 0.

IsSameText([Text1,Text2],CaseSensitive)

Returns True if Text1 and Text2 are the same. If CaseSensitive is true, the words must match in case, in addition to its content.

IsTrue(x)

Returns True if x has a value of -1.

TrueValue

Returns -1.





Text Manipulation Functions. These functions can be used to manipulate or get information out of existing text values.



Function

Description

AreValuesInRange([x,y,z...],tolerance,[xName,yName,zName...])

If the values in the array [x,y,z...] are all within tolerance % of each other, it returns True. If a pair of values in the array are not within tolerance % of each other, it returns text indicating which ones are not.

Copy(x,y,z)

X is the full text. Y is the position to start copying text. Z is the number of letters (also known as characters) to copy from the full text. Returns a subset of the text x, starting at position y, copying z characters in total.

ExtractFilename("file_path")

Accepts a file name and will return the text of the data file name.

For example, if a file path is C:\Data Files\Today\FlowData1.fcs, ExtractFilename("file_path")will return FlowData1.fcs.

Keyword tokens using the keywords $FIL, $FCSE_FILENAME or $FCSE_FILENAMENOPATH can be used for this function.

ExtractFolderFromFilename("file_path")

Accepts a file name and will return the text of the file path of the folder in which the data is contained.

For example, if a file path is C:\Data Files\Today\FlowData1.fcs, ExtractFolderFromFilename("file_path") will return C:\Data Files\Today.

Keyword tokens using the keyword $FCSE_FILENAME can be used for this function.

FormatFloat("format string",number)

FormatFloat formats the floating-point value given by Number using the format string given by Format String. The following format specifiers are supported in the format string:



Specifier

Represents

0

Digit placeholder. If the value being formatted has a digit in the position where '0' appears in the format string, then that digit is copied to the output string. Otherwise, a '0' is stored in that position in the output string.

#

Digit placeholder. If the value being formatted has a digit in the position where '#' appears in the format string, then that digit is copied to the output string. Otherwise, nothing is stored in that position in the output string.

.

Decimal point. The first '.' character in the format string determines the location of the decimal separator in the formatted value; any additional '.' characters are ignored. The actual character used as a decimal separator in the output string is determined by the DecimalSeparator global variable or its equivalent.

,

Thousand separator. If the format string contains one or more ',' characters, the output will have thousand separators inserted between each group of three digits to the left of the decimal point. The placement and number of ',' characters in the format string does not affect the output, except to indicate that thousand separators are wanted. The actual character used as a thousand separator in the output is determined by the ThousandSeparator global variable or its equivalent.

E+

Scientific notation. If any of the strings 'E+', 'E-', 'e+', or 'e-' are contained in the format string, the number is formatted using scientific notation. A group of up to four '0' characters can immediately follow the 'E+', 'E-', 'e+', or 'e-' to determine the minimum number of digits in the exponent. The 'E+' and 'e+' formats cause a plus sign to be output for positive exponents and a minus sign to be output for negative exponents. The 'E-' and 'e-' formats output a sign character only for negative exponents. Learn more about working with Scientific Notation.

'xx'/"xx"

Characters enclosed in single or double quotation marks are output as such and do not affect formatting.

;

Separates sections for positive, negative, and zero numbers in the format string.


The locations of the leftmost '0' before the decimal point in the format string and the rightmost '0' after the decimal point in the format string determine the range of digits that are always present in the output string.

The number being formatted is always rounded to as many decimal places as there are digit placeholders ('0' or '#') to the right of the decimal point. If the format string contains no decimal point, the value being formatted is rounded to the nearest whole number.

If the number being formatted has more digits to the left of the decimal separator than there are digit placeholders to the left of the '.' character in the format string, the extra digits are output before the first digit placeholder.

To allow different formats for positive, negative, and zero values, the format string can contain between one and three sections separated by semicolons, as follows:

*One section: The format string applies to all values.
*Two sections: The first section applies to positive values and zeros, and the second section applies to negative values.
*Three sections: The first section applies to positive values, the second applies to negative values, and the third applies to zeros.

If the section for negative values or the section for zero values is empty, that is if there is nothing between the semicolons that delimit the section, the section for positive values is used instead.

If the section for positive values is empty or if the entire format string is empty, the value is formatted using general floating-point formatting with 15 significant digits. General floating-point formatting is also used if the value has more than 18 digits to the left of the decimal point and the format string does not specify scientific notation.

FragmentCount("text1",'text2")

Returns the number of string fragments in text2 separated by text1.



Text1 will equal a delimiter, such as "\", for example.  Text 2 will be a pathway.



For example, FragmentCount("\","C:\Documents\Data\Sample.fcs") will return 4, since there are 4 fragments that are delimited by "\".



Keywords that return a pathway can be used for Text2.

GetContainingFolder("file_path")

Returns the name of the folder containing the file named in file_path.



Example, if file Sample.fcs was located in the directory C:\Program Files\De Novo Software\FCS Express 7 Plus Research Edition/Data, the output for this function would be Data.

GetFragment(n, "text1", "text2")

Returns the Nth string fragment in Text2, delimited by Text1.



N = the nth occurrence, Text1 = a delimiter, such as "\", Text2 = a string that uses Text1 as a delimiter.



Some examples of Text2 could be:

a pathway that uses "\" as a delimiter, such as C:\Documents\Data\Sample.fcs.
a name of a file where several identifiers have been concatenated together and delimited by "_", such as FirstnameLastname_ID1_ID2_ID3_Date.



For example, GetFragment(1, "\", "C:\Documents\Data\Sample.fcs") will return C:.



GetFragment(2, "\", "C:\Documents\Data\Sample.fcs") will return Documents.



If n is a negative number, the function will start evaluating the text string backwards.



For example, GetFragment(-2,"_","SheldonCooper_ABC_DEF_GHI") will return DEF.

IncludeTrailingPathDelimiter("file_path")

Accepts the value of "File_path", while including the delimiter (\, for example) at the end of the string.

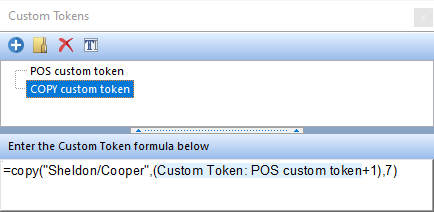

Pos(x,y)

X is the text that you are looking for. Y is the text that you are searching in. Returns the position of x inside y. If x cannot be found in y, the return value is 0.

PositionInText("text1","text2",StartingPosition,N)

PositionInText returns the position of a string within another string.

Text1 = the text for which you are searching

Text2 = the text in which you are searching

StartingPoint = the position at which to start searching (1,2,3...etc.)

N = the Nth occurrence for the string for which you are searching (1 for 1st occurrence, 2 for 2nd occurrence, etc.)



For example =PositionInText("d","abcdefgabcdefg",1,1) would return 4 because the first occurrence (N=1) of "d" occurs at position 4.

                =PositionInText("d","abcdefgabcdefg",1,2) would return 11 because the second occurrence (N=2) of "d" occurs at position 11.



This function would return a "0" if no occurrence can be found.

RemoveSpaces(x)

Removes the spaces from the text x, and returns the resulting text.

RemoveText(x,y,RemoveAll)

This function will remove the string x from y.  RemoveAll will equal True or False depending on whether only the first occurrence is to be removed.

For example, =RemoveText("def","abcdefg",True) will return abcg.

ReplaceText(x,y,z,RemoveAll)

This function will replace the string x with the string y located within the string z.  RemoveAll will equal True or False depending on whether only the first occurrence is to be removed.

For example, =ReplaceText("def","xyz","abcdefg",True) will return abcxyzg.

x+y

If x and y are both text (i.e., strings), returns the concatenation of x with y.

Trim

Removes spaces before and after a string of text.

For example, =Trim("   abcd efgh      ") will return abcd efgh



Statistical Functions



Operator

Description

ChiSquareTest([number1,...],[number2,...])

Performs the Chi-squared goodness of fit test to test if data is coming from specific distribution. The first parameter is an array of observed frequencies, the second parameter is an array of estimated (theoretical) frequencies.



This function returns the probability of observing the given result by chance given that the null hypothesis is true, where the null hypothesis is that the distribution in the first array is the same as the distribution in the second array.



The FCS Express implementation of this function is a right tailed test.

FTest([number1,...],[number2,...])

Performs F-Test by comparing number1 and number2 standard deviations. The parameters are the first and the second data set.

GrubbsTest([number1,...])

Performs the Grubbs test for outliers. Test is used to detect outliers in a univariate data set. It is based on the assumption of normality. That is, you should first verify that your data can be reasonably approximated by a normal distribution before applying the Grubbs' test.  The parameter is the data set.

KSTest([number1,...],[number2,...])

Performs two-sample Kolmogorov-Smirnov goodness of fit test of independent random samples Data1 and Data2. Test determines if Data1 and Data2 samples are drawn from the same continuous population. The parameters are the first and the second data set.

KSTest2([number1,...],[number1,...], tails, significance)

Performs two-sample Kolmogorov-Smirnov goodness of fit test of independent random samples Data1 and Data2. Test determines if Data1 and Data2 samples are drawn from the same continuous population. The parameters are the first and the second data set, the hypothesis type (TWO_TAILED, LEFT_TAILED or RIGHT_TAILED (not case sensitive)), and significant level for which to test. For example, 0.05.

LillieforsTest([number1,...])

Performs the Lilliefors goodness of fit test to a normal distribution with unknown parameters mu and sigma. The parameter is the data set.

MannWhitney([number1,...],[number1,...],hypothesis type,alpha, use normal approximation)

The Mann Whitney test is a nonparametric test of the null hypothesis that two samples come from populations of equal means, against an alternative hypothesis, especially that a particular population has a larger mean than the other one.  It operates under the assumption that all the observations from both groups are independent of each other.  (Credit: Wikipedia)



The variables for the functions are as follows:



[Number1.....] - Comma separated values from the 1st data set.

[Number2.....] - comma separated values from the 2nd data set.

Hypothesis Type - TWO_TAILED, LEFT_TAILED or RIGHT_TAILED (not case sensitive)

Alpha - the significance level for which to test.  For example, 0.05.

Use Normal Approximation - True/False

PercentilePlot(Plot Number, Axis, Overlay Number, k-th Percentile)

Returns the k-th percentile of the distribution displayed in a plot.

Plot Number - Must be an integer value greater than, or equal to, 1.

Axis - Must be a text string (in quotes) between “X”, “X axis”, “XAxis”, “Y”, “Y axis”, or “YAxis”.

Overlay Number - Must be an integer value greater than, or equal to, 1.

Percentile - Is the percentile (inclusive) of interest. Must be an integer value between 0 and 100.

SSMD(mean max,mean min,n max,n min,SDmax,SDmin)

Short for Strictly Standardized Mean Difference.  Has been used as a ranking metric for hit selection in high throughput screening assays.

StainIndex(positive population mean/median, negative population mean/median, negative population standard deviation).

Performs a stain index calculation using the means/medians of positive and negative populations and the negative population standard deviation based on the Stain Index formula of (Median of Positive - Median of Negative) / (SD of Negative * 2).

TTest1S([number1,...],expected mean)

Performs the one sample T-test. It compares Data mean value with the expected mean. The first parameter is the data set.

TTest2S([number1,...],[number2,...],tails,paired)

It compares Number1 mean value with Number2 mean value. The assumption is Number1 and Number2 variances are equal, but unknown. The first 2 parameters are the first and the second data sets.  Tails parameter can be 1 or 2. It is used to define the type of null hypothesis, a value of 1 means left tailed, a value of 2 means two tailed.   Paired can be True or False.  If True, it will perform Two-Sample Paired t-Test. If False, it will perform Two-Sample Pooled (unpaired) t-Test.

Wilcoxon([number1,...],[number1,...],hypothesis type,alpha)

The Wilcoxon test is a nonparametric test that compares two paired groups. The test calculates the difference between each set of pairs and analyzes these differences. The Wilcoxon Rank Sum test can be used to test the null hypothesis that two populations have the same continuous distribution.  (credit: Investopedia)



The variables for the functions are as follows:



[Number1.....] - Comma separated values from the 1st data set.

[Number2.....] - comma separated values from the 2nd data set.

Hypothesis Type - TWO_TAILED, LEFT_TAILED or RIGHT_TAILED (not case sensitive)

Alpha - the significance level for which to test, for example, 0.05.

ZPrime(mean negative,SD negative,mean positive,SD positive)

The ZPrime function is used to calculate the Z Factor.  The Z-factor is an attempt to quantify the suitability of a particular assay for use in a full-scale, high-throughput screen by comparing the Mean and Standard Deviation of a negative control to the Mean and Standard Deviation of a positive control within the experiment.

ZTest([number1,...],expected mean,expected SD)

Compares the normally distributed Data elements mean value with known standard deviation expected SD, to a mean value expected mean. ([Number1,...]) is the data set.



Date and Time Manipulation Functions



Function

Description

DateKWToDate($DATE keyword,n)

Takes the standardized format of the $DATE keyword, which is in either dd-mmm-yy or dd-mmm-yyyy format, and returns mm/dd/yyyy.  If $DATE has the year listed as yy, n will be placed in front of yy to produce yyyy.  A keyword token will be used to insert the value of $DATE.



For example if the $DATE keyword equals 03-Nov-05, DateKWToDate($DATE,20) will return 11/03/2005.



If the year is already formatted as yyyy, the function will still return mm/dd/yyyy.  If the year is already formatted as yyyy, n must still be accounted for in the function.



For example, if $DATE keyword equals 04-Jul-2008, DateKWToDate($DATE,20) will return 07/04/2008.  Also, DateKWToDate($DATE,0) will return 07/04/2008.

DaysBetween(StartDate,EndDate)

Returns the number of days between the values entered for the Start Date and End Date.  Dates in anything other than a mm/dd/yyyy format will need to be run through DateKWToDate and/or FormatDateTime prior to being used within this function.

FormatDateTime("format","Date or Time")

FormatDateTime formats the Time or Date value given by using the format given.



Example:  =FormatDateTime("yyyy-mm-dd",(<Current Date token>)) will return the Current Date in a format showing Year-Month-Day,                   with 2 digits for the month and day, and 4 digits for the year.

             =FormatDateTime("hh:mm:ss",(<Current Time token>)) will return the Current Time in a format showing Hour:Minute:Second,                  with 2 digits for Hour, Minute and Second.



*Please note that if using the <Current Date> token, no quotation marks are needed, as the Result Type for this token is Text.



Formats can be as follows below:



Specifier Displays :

c

Displays the date using the format given by the ShortDateFormat global variable, followed by the time using the format given by the LongTimeFormat global variable. The time is not displayed if the date-time value indicates midnight precisely.

d

Displays the day as a number without a leading zero (1-31).

dd

Displays the day as a number with a leading zero (01-31).

ddd

Displays the day as an abbreviation (Sun-Sat) using the strings given by the ShortDayNames global variable.

dddd

Displays the day as a full name (Sunday-Saturday) using the strings given by the LongDayNames global variable.

ddddd

Displays the date using the format given by the ShortDateFormat global variable.

dddddd

Displays the date using the format given by the LongDateFormat global variable.

e

(Windows only) Displays the year in the current period/era as a number without a leading zero (Japanese, Korean, and Taiwanese locales only).

ee

(Windows only) Displays the year in the current period/era as a number with a leading zero (Japanese, Korean, and Taiwanese locales only).

g

(Windows only) Displays the period/era as an abbreviation (Japanese and Taiwanese locales only).

gg

(Windows only) Displays the period/era as a full name (Japanese and Taiwanese locales only).

m

Displays the month as a number without a leading zero (1-12). If the m specifier immediately follows an h or hh specifier, the minute rather than the month is displayed.

mm

Displays the month as a number with a leading zero (01-12). If the mm specifier immediately follows an h or hh specifier, the minute rather than the month is displayed.

mmm

Displays the month as an abbreviation (Jan-Dec) using the strings given by the ShortMonthNames global variable.

mmmm

Displays the month as a full name (January-December) using the strings given by the LongMonthNames global variable.

yy

Displays the year as a two-digit number (00-99).

yyyy

Displays the year as a four-digit number (0000-9999).

h

Displays the hour without a leading zero (0-23).

hh

Displays the hour with a leading zero (00-23).

n

Displays the minute without a leading zero (0-59).

nn

Displays the minute with a leading zero (00-59).

s

Displays the second without a leading zero (0-59).

ss

Displays the second with a leading zero (00-59).

z

Displays the millisecond without a leading zero (0-999).

zzz

Displays the millisecond with a leading zero (000-999).

t

Displays the time using the format given by the ShortTimeFormat global variable.

tt

Displays the time using the format given by the LongTimeFormat global variable.

am/pm

Uses the 12-hour clock for the preceding h or hh specifier, and displays 'am' for any hour before noon, and 'pm' for any hour after noon. The am/pm specifier can use lower, upper, or mixed case, and the result is displayed accordingly.

a/p

Uses the 12-hour clock for the preceding h or hh specifier, and displays 'a' for any hour before noon, and 'p' for any hour after noon. The a/p specifier can use lower, upper, or mixed case, and the result is displayed accordingly.

ampm

Uses the 12-hour clock for the preceding h or hh specifier, and displays the contents of the TimeAMString global variable for any hour before noon, and the contents of the TimePMString global variable for any hour after noon.

/

Displays the date separator character given by the DateSeparator global variable.

:

Displays the time separator character given by the TimeSeparator global variable.

'xx'/"xx"

Characters enclosed in single or double quotation marks are displayed as such, and do not affect formatting.

HoursBetween(start time,end time)

Counts the number of hours between the start time and the end time.  The keywords $BTIM or $ETIM can be used for the start and end times.  However, user-defined times would need to be fed through the StrToTimeFMT function prior to use in this function to establish the proper formatting.

MillisecondsBetween(start time,end time)

Counts the number of milliseconds between the start time and the end time.  The keywords $BTIM or $ETIM can be used for the start and end times.  However, user-defined times would need to be fed through the StrToTimeFMT function prior to use in this function to establish the proper formatting.

MinutesBetween(start time,end time)

Counts the number of minutes between the start time and the end time.  The keywords $BTIM or $ETIM can be used for the start and end times.  However, user-defined times would need to be fed through the StrToTimeFMT function prior to use in this function to establish the proper formatting.

SecondsBetween(start time,end time)

Counts the number of seconds between the start time and the end time.  The keywords $BTIM or $ETIM can be used for the start and end times.  However, user-defined times would need to be fed through the StrToTimeFMT function prior to use in this function to establish the proper formatting.

StrToDateFMT(text, "format", "delimiter")

Returns a date string in the format as defined by the user, using the specifier displays as seen in FormatDateTime("format","Date or Time") of ddmmyyyy  using the delimiter designated, such as "/".

StrToTimeFMT(text, "time delimiter", "millisecond delimiter")

Returns a time string using a time delimiter and a millisecond delimiter.

YearsBetween(Start Date,End Date)

Returns the number of years between the values entered for the Start Date and End Date.  Dates in anything other than a mm/dd/yyyy format will need to be run through DateKWToDate and/or FormatDateTime prior to being used within this function.



Regression. These function allow to fit several regression functions and to calculate the corresponding results. Two of those functions allow to retrieve the X (or the Y) value for a given Y (or a given X) from a Scatter with Regression plot fit.



Function

Description

RegressionPlotXToY(Plot Number, Overlay Number, X Value)

The three mandatory parameters are the Plot Number of a regression plot (numeric), the Overlay Number of a regression fit (numeric) and the X known value (numeric). The function returns the Y value of the regression function given the X input value. Only a single input X value is allowed.

RegressionPlotYToX(Plot Number, Overlay Number, Y Value)

The three mandatory parameters are the Plot Number of a regression plot (numeric), the Overlay Number of a regression fit (numeric) and the Y known value (numeric). The function returns the X value of the regression function given the Y input value. Only a single input Y value is allowed.





SOP (Standard Operating Procedure) Functions. These functions can be used to derive information from SOP's.



Function

Description

HasSOPBeenRun

Returns true or false in the form of -1 (True) or 0 (False) to determine if any SOP has been previously run in the layout.

IsSOPAfterStep(StepID)

Returns true or false in the form of -1 (True) or 0 (False) to determine the current SOP step is after a specific SOP Internal Step ID.

IsSOPBeforeStep(StepID)

Returns true or false in the form of -1 (True) or 0 (False) to determine the current SOP step is before a specific SOP Internal Step ID.

IsSOPFinished

Returns true or false in the form of -1 (True) or 0 (False) to determine if the SOP has finished running in the layout.

IsSOPOnStep(StepID)

Returns true or false in the form of -1 (True) or 0 (False) to determine if the running SOP is currently on a specific SOP Internal Step ID.

IsSOPRunning

Returns true or false in the form of -1 (True) or 0 (False) to determine if an SOP is currently running.



Color Functions.

Function

Description

InterpolateColors("startColor","endColor",fraction)

Returns a color in Hex color code based on fraction between two other colors. Start Color and End Color may be any written color names, ie Red, Green, Gray, or any Hex Color Code, ie #FF0000, #008000, #808080. The color may also be chosen from a color palette by right clicking in the formula reference area and choosing Insert Color. Fraction may be any value between 0 and 1 with 0 being the start color and 1 being the end color. By including a token such as % gated as the numerator in a formula of (%gated/100) one can achieve a specific color associated with a percent gated based on a gradient between the start and end color.  The Interpolate Color result can then be used to color any object or fill that allows a token for the color, for instance, Background/Fill of objects.



Parameter Math Variables. These functions can be used to manipulate or get information out of existing parameter  values.



Function

Description

Row

The variable 'row' describes the current value in a particular row, or cell number, of the data file. ‘Row’ may be used to perform sequential calculations on a series of values in a file. For example, 'row' may be used to create a time parameter. By using the 'row' variable, you use the cell number as a parameter and can plot fluorescence against cell number to check for uniform flow over time. Or, if the acquisition took 5 minutes and you have 5000 cells you could use the following formula to get the actual time (in minutes) where that cell was acquired. Formula: =(row-1)*(5/5000)

ConvertLinToLog(I,J,K,L)

Same as above, except that variable I will use the Parameter number that is being converted, for example P4 or P14.

ConvertLogToLin(I,J,K,L)

Same as above, except that variable I will use the Parameter number that is being converted, for example P4 or P14.
