Once a k-means transformation is applied to a plot, the newly created Cluster Assignment parameters can be accessed by clicking on the axis label of the plot Figure 9.112. Please note that heatmaps can only display Cluster Assignments, which is automatically displayed when a k-means transformation is applied.

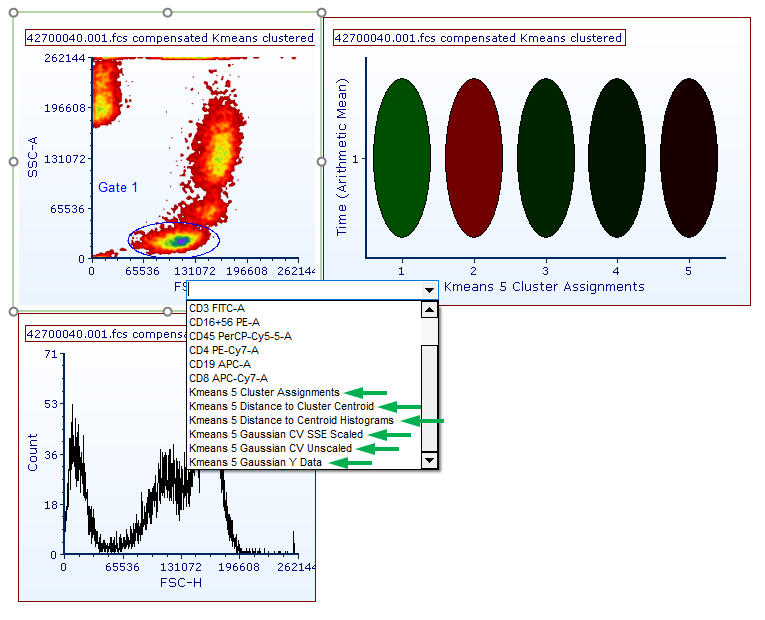

Figure 9.111 Newly created parameters can be accessed by clicking on the axis label of the plot of interest.

Figure 9.111 Newly created parameters can be accessed by clicking on the axis label of the plot of interest.





Gates can now be created on the following Cluster Assignment parameters to specifically select the events within one or more clusters.:

•Cluster Assignments (1D/2D plot and heatmap),

•Distance to centroid Histograms(1D/2D plot only),

•Gaussian CV SSE Scaled (1D/2D plot only),

•Gaussian CV Unscaled (1D/2D plot only),



These gates can then be used to back gate clustered events on non-clustering parameters.



Here are some examples of cluster selection using the above-mentioned parameters:



1D plots

Markers can be created on 1D plot displaying clustering parameters as one would on non-clustering parameters. After converting the marker to be a gate, that marker can be used to back gate clustered events on non-clustering parameters (Figure 9.113).



Figure 9.112 Markers can be used to select cluster on 1D plot displaying a clustering parameter. Gate 1 was defined on a density plot and events within it have been clustered. Gate 1 has also been then applied to the k-means transformed histogram. Markers from the histogram were converted to gates and back gated onto the CD4 vs CD3 dot plot.

Figure 9.112 Markers can be used to select cluster on 1D plot displaying a clustering parameter. Gate 1 was defined on a density plot and events within it have been clustered. Gate 1 has also been then applied to the k-means transformed histogram. Markers from the histogram were converted to gates and back gated onto the CD4 vs CD3 dot plot.



2D plots

Gates can be created on 2D plots displaying clustering parameters as one would on 2D plots displaying non-clustering parameters. In the example below gates have been created on a 2D plot displaying clustering parameters on both X and Y axis but please consider that a clustering parameter can be displayed together with a non-clustering parameter as well (Figure 9.114).

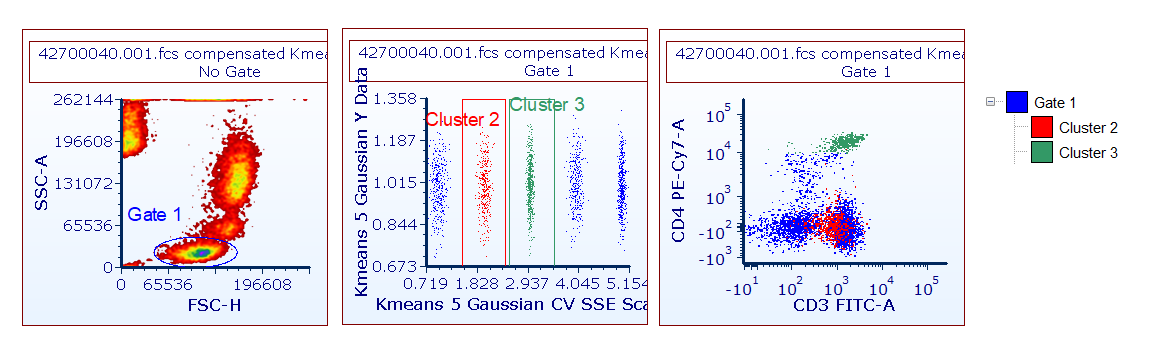

Figure 9.113 Gates can be used to select clusters on 2D plot displaying one or more clustering parameters. Gate 1 was defined on a density plot and events within it have been clustered. Gate 1 has also been then applied to the k-means transformed plots. In this example 1D Gates (i.e. Markers) have been used to select Cluster 2 and Cluster 3. Events in those gates have been back gated onto the CD4 vs CD3 dot plot.

Figure 9.113 Gates can be used to select clusters on 2D plot displaying one or more clustering parameters. Gate 1 was defined on a density plot and events within it have been clustered. Gate 1 has also been then applied to the k-means transformed plots. In this example 1D Gates (i.e. Markers) have been used to select Cluster 2 and Cluster 3. Events in those gates have been back gated onto the CD4 vs CD3 dot plot.





Heatmaps

Clustering Assignments are automatically displayed on heatmaps when a transformation is applied to them.



Once the k-Means clustering is displayed on the Heat Map, the following actions can be performed on the Heat Map:

•Modify the well size

•Have well size dependent on a statistic such as number of events in the node

•Set the Parameter and Statistic for display

•Change the Color Level and Color Scheme

•Create Well gates to select one or more clusters (i.e. wells) and use those gates/clusters for downstream analysis.



In the following example (Figure 9.115) two well gates have been created on cluster 2 and 3 (well gate 2 is red highlighted on the heatmap).

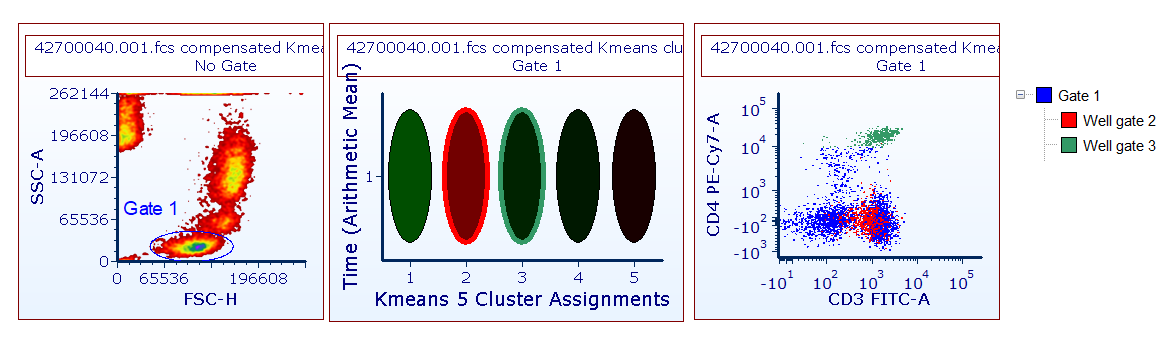

Figure 9.114 Well gates can be used to select clusters on heatmaps. Gate 1 was defined on a density plot and events within it have been clustered. Gate 1 has also been then applied to the k-means transformed plots. In this example Well Gates have been used to select Cluster 2 and Cluster 3. Events in those gates have been back gated onto the CD4 vs CD3 dot plot.

Figure 9.114 Well gates can be used to select clusters on heatmaps. Gate 1 was defined on a density plot and events within it have been clustered. Gate 1 has also been then applied to the k-means transformed plots. In this example Well Gates have been used to select Cluster 2 and Cluster 3. Events in those gates have been back gated onto the CD4 vs CD3 dot plot.
